306-031-521-178

Overview

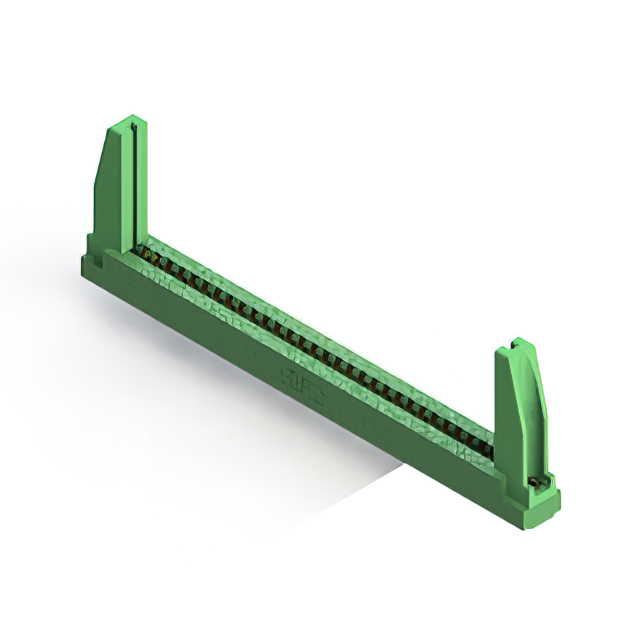

The EDAC Inc. 306-031-521-178 is a dual female card edge connector featuring 62 positions arranged in two rows. It utilizes a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component employs gold-plated contacts for reliable signal transmission and is housed in a low-profile insulator body. Designed for panel mounting, it supports vertical installation angles and operates within a temperature range of -40°C to 105°C.

Feature Summary

• Dual female configuration providing 62 connection points across two rows
• Gold-plated contacts ensure durable electrical performance
• Low-profile insulator body design facilitates compact assembly
• Compatible with standard 0.062-inch nominal thickness PCBs

Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics board-to-board connections
• Medical device internal circuitry integration

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination style, and flange specifications. Ensure compatibility with the target PCB thickness and mounting requirements before procurement. Cross-reference the part number with authorized distributors to confirm current availability and lead times, as manufacturing schedules may vary.

Selection Notes

Select this connector when a high-density dual-row interface is required for standard thickness boards. The 0.156-inch pitch offers a balance between signal density and mechanical robustness. Consider the low-profile housing if space constraints exist within the enclosure. Verify that the operating temperature range meets the environmental demands of the specific application scenario.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in mounting options and contact configurations. The 306 series is widely utilized in various electronic assemblies requiring reliable vertical interconnects. This specific model represents a high-pin-count variant within the family.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with differing pin counts or termination styles. Verify dimensional compatibility and electrical ratings before substituting with components from other manufacturers.
