Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

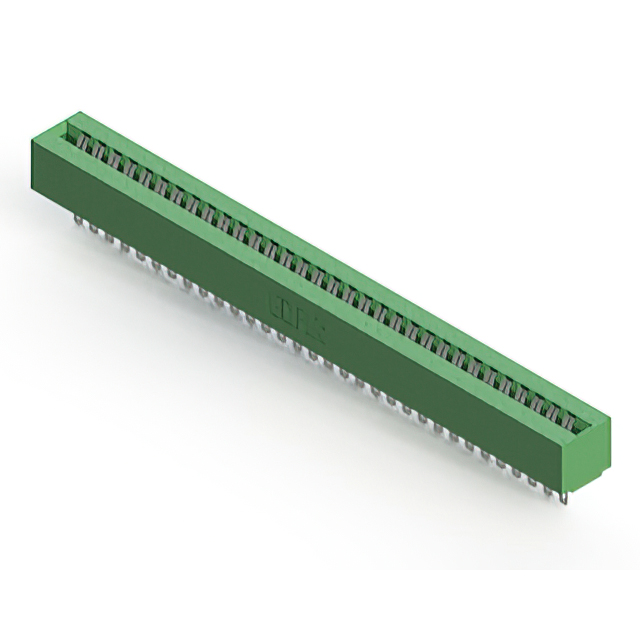

The EDAC Inc. 306-032-400-101 is a standard card edge connector receptacle designed for vertical through-hole mounting. It features a dual female configuration with 64 positions arranged in two rows, utilizing a 0.156-inch (3.96 mm) pitch. The contacts are gold-plated copper alloy, while the housing is constructed from green diallyl phthalate (DAP). This component supports board thicknesses of 1.57 mm and operates within a temperature range of -40°C to +125°C.
Feature Summary
- Dual-edge female contact design accommodates double-sided card edges
- Gold-plated copper alloy contacts ensure reliable signal transmission
- Vertical through-hole termination facilitates secure PCB integration
- High-temperature DAP housing provides thermal stability
Applications
- Industrial control system backplanes
- Telecommunications equipment interconnects
- High-temperature electronic module interfaces
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm contact plating, housing color, and termination style. Ensure the selected variant matches the required board thickness and pitch specifications for your application. Cross-reference the manufacturer part number with authorized distributors to confirm authenticity and current availability status before finalizing procurement orders.
Selection Notes
Select this connector when a dual-row, high-density interface is required for vertical mounting applications. Consider the 0.156-inch pitch and 64-position capacity for space-constrained designs. Evaluate the operating temperature range and material compatibility with the mating card edge to ensure long-term reliability under specified environmental conditions.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly needs. The 306-032-400-101 specifically addresses requirements for robust, high-reliability connections in demanding industrial environments.
Replacement Considerations
Consult official EDAC substitution guides for compatible alternatives. Verify that any replacement maintains identical pitch, position count, and mounting style to ensure mechanical and electrical compatibility without redesigning the printed circuit board layout.
