306-032-400-104

$14.38

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:fdc8edd4d208 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-400-104

Overview

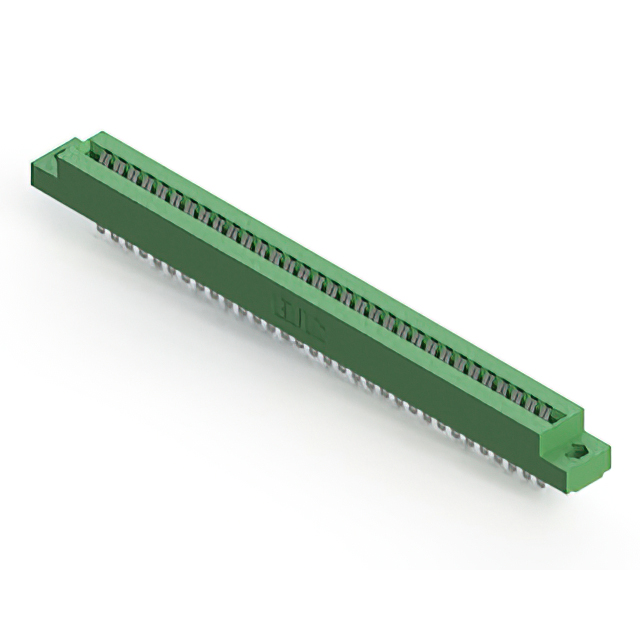

The EDAC Inc. 306-032-400-104 is a standard card edge connector featuring 64 positions arranged in a dual-edge configuration. It utilizes a 0.156-inch (3.96mm) contact spacing with a single centerline row. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Contact plating is tin, and the insulator body is green. It operates within a temperature range of -40°C to +105°C.

Feature Summary

Dual-edge receptacle design for secure board insertion
Single centerline row configuration for standardized mounting
Low-profile insulator body construction

Applications

Computing and storage systems
Industrial control modules
Communications network equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating and termination style. Ensure the selected variant matches the required PCB thickness and mounting orientation. Cross-reference the part number with official EDAC documentation to validate availability and lead times before finalizing procurement plans.

Selection Notes

Select this component when a dual-edge card edge interface is required for high-density signal routing. The 0.156-inch pitch accommodates standard board layouts. Verify that the tin-plated contacts meet the environmental requirements for the intended operating temperature range. Confirm mechanical compatibility with the housing or panel mount constraints.

Part Context

This connector belongs to the EDAC 306 series, which provides interconnect solutions for card edge applications. The series offers various position counts and termination options. EDAC specializes in connectors for computing, medical, aerospace, and industrial sectors, focusing on quality assurance and reliable logistics for global distribution channels.

Replacement Considerations

Check for variants within the 306 series that offer different contact platings or mounting flanges. Ensure any substitute maintains the 0.156-inch pitch and 64-position count. Verify dimensional compatibility with existing PCB footprints and housing structures.
