306-032-400-112

Overview

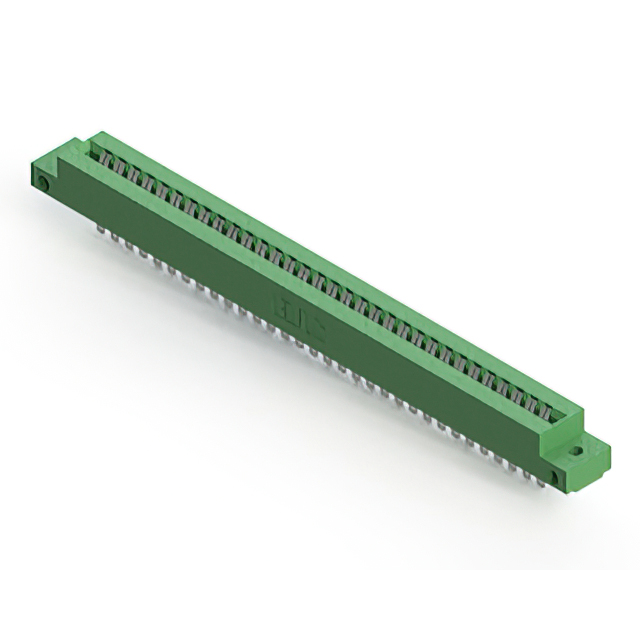

The EDAC Inc. 306-032-400-112 is a dual-edge female card edge connector designed for vertical board mounting. It features 32 positions with a 0.156-inch (3.96mm) contact spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Contact surfaces are tin-plated to ensure reliable signal transmission. The insulator body is constructed from low-profile material, optimizing space in dense electronic assemblies.

Feature Summary

• Dual-edge female configuration for secure board retention
• Low-profile insulator body design for space efficiency
• Tin-plated contacts for corrosion resistance and conductivity

Applications

• Industrial control systems
• Telecommunications equipment
• Computer peripheral interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm plating type and orientation. Ensure the target PCB thickness aligns with the 0.062-inch specification. Confirm that the tin-plated finish meets the environmental requirements for the intended application environment before finalizing procurement.

Selection Notes

Select this component when a dual-edge connection is required for standard thickness boards. The 0.156-inch pitch offers a balance between pin density and ease of assembly. Consider the tin plating for general-purpose applications where gold plating is not strictly necessary for high-cycle mating durability.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its robust construction and compatibility with common PCB thicknesses. It serves as a reliable interconnect solution for various electronic modules requiring stable electrical connections.

Replacement Considerations

Compatible substitutes within the same series include 306-032-400-158 and 306-032-400-168. Verify that any replacement maintains the identical 32-position count and 0.156-inch pitch to ensure mechanical fit.
