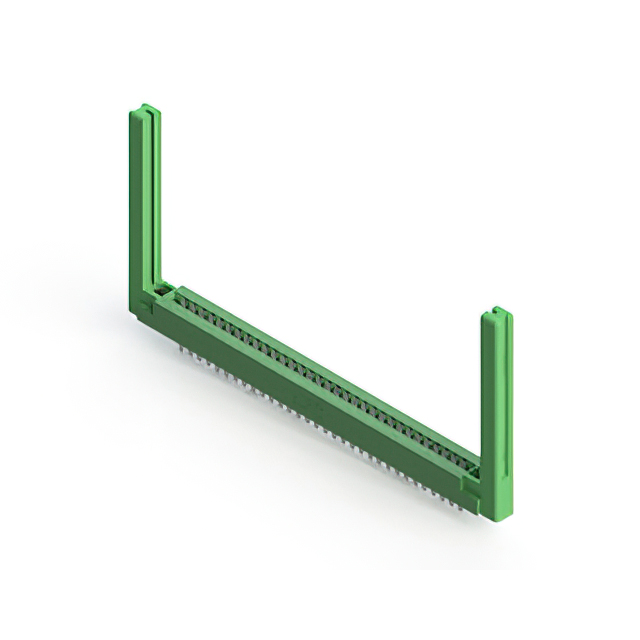

306-032-400-158

$16.70

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:6233d4679596 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-400-158

Overview

The EDAC Inc. 306-032-400-158 is a dual-edge female card edge connector featuring 64 positions with a 0.156-inch (3.96mm) pitch. It utilizes tin-plated cantilever contacts and a green thermoplastic polyester insulator. Designed for panel mount through-hole termination, it supports PCB thicknesses between 0.054 and 0.070 inches. The component operates within a temperature range of -40°C to 105°C and includes flange features for secure installation.

Feature Summary

Dual-edge female contact configuration for non-specified board types
Cantilever spring contact design for reliable signal transmission
Panel mount installation with integrated flange and threaded inserts

Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Test and measurement instrument modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to ensure correct plating and insulation material specifications. Confirm that the required PCB thickness falls within the specified 0.054 to 0.070 inch range before procurement. Cross-reference the RoHS compliance status with current regulatory requirements for your target market.

Selection Notes

Select this connector when a high-density interface with a 0.156-inch pitch is required for dual-sided card insertion. Ensure the application environment remains within the -40°C to 105°C operational temperature limits. Verify that the mounting space accommodates the panel-mount flange dimensions and that the termination method aligns with standard through-hole soldering processes.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by robust mechanical construction and versatile mounting options. The 306 series provides various position counts and pitch options to accommodate different circuit board densities and form factors in electronic assemblies.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with identical electrical and mechanical parameters. Verify compatibility with existing PCB footprints and mounting hardware before replacing.
