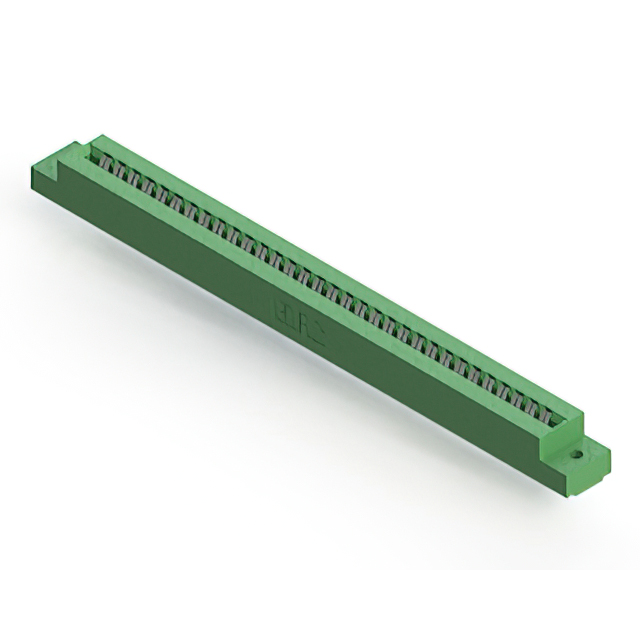

306-032-420-102

$14.38

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:eeb5854a9e95 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-420-102

Overview

The EDAC Inc. 306-032-420-102 is a standard card edge connector from the 306 series, designed for dual-edge board applications. It features 64 positions with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes tin-plated contacts and a green thermoplastic insulator body. The unit is rated for 5 A current and offers an insulation resistance of 5 Gohms. Installation is achieved via panel mount style.

Feature Summary

Dual-edge female connector configuration accepting single centerline row
Low profile insulator body construction
Panel mount installation style with vertical orientation

Applications

Industrial control systems requiring robust card edge interfaces
Telecommunications equipment backplanes
Test and measurement instrumentation modules

Procurement Notes

Verify the specific plating finish and material composition against the official manufacturer datasheet before integration. Confirm that the panel mounting requirements align with the specified vertical orientation and physical dimensions. Ensure compatibility with the target PCB thickness of 0.062 inches to guarantee proper mechanical retention and electrical contact stability during operation.

Selection Notes

Select this component when a dual-edge connection is required for 3.96 mm pitch applications. The 64-position count suits high-density interface needs within standard form factors. Consider the tin plating for cost-effective performance in non-corrosive environments. Verify that the 5 A rating meets the system's power distribution requirements without exceeding thermal limits.

Part Context

This part belongs to the EDAC 306 series of edgeboard connectors, which are engineered for reliable signal transmission in modular electronic assemblies. The series provides various position counts and mounting options to accommodate diverse design constraints. The 306-032-420-102 specifically addresses dual-edge board connectivity needs with standardized dimensional tolerances.
