306-032-420-107

Overview

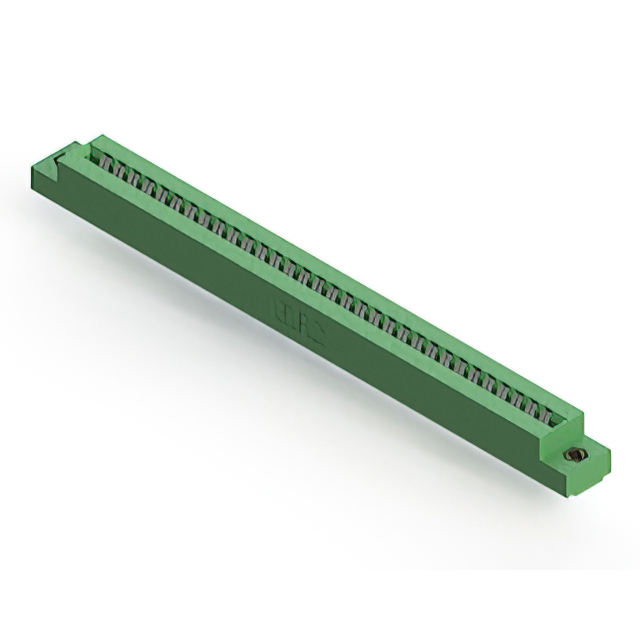

The EDAC Inc. 306-032-420-107 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features 64 positions arranged in a dual female configuration with a 3.96 mm (0.156 inch) contact spacing. The connector utilizes tin-plated copper alloy contacts and a green thermoplastic polyester insulator body. It accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch).

Feature Summary

• Dual-edge female contact configuration for secure board insertion.
• Panel mount installation style with vertical alignment.
• Tin-plated copper alloy contacts for reliable conductivity.

Applications

• Industrial control systems requiring robust interconnects.
• Telecommunications equipment backplanes.
• Automotive electronic modules.

Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and termination style. Confirm the package type aligns with assembly requirements. Ensure the component meets applicable environmental standards such as RoHS compliance before finalizing procurement orders.

Selection Notes

Select this model when a dual-edge connector with 64 positions is required. Ensure the design accommodates the 3.96 mm pitch and 1.57 mm board thickness. Verify that the panel mount style fits the mechanical constraints of the enclosure design.

Part Context

This component belongs to the EDAC 306 series of card edge connectors. The series offers various position counts and configurations tailored for diverse interconnect needs. The 306-032-420-107 specifically addresses high-density dual-edge requirements within this product family.

Replacement Considerations

Consult official EDAC documentation for direct substitutes within the 306 series. Verify compatibility regarding pin count, pitch, and mounting style before considering alternative part numbers.
