306-032-420-112

Overview

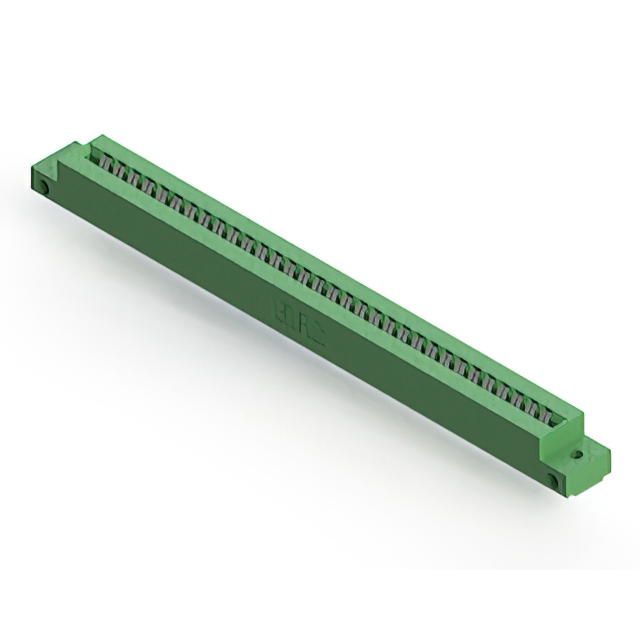

The EDAC Inc. 306-032-420-112 is a standard card edge connector receptacle featuring 32 positions arranged in a single centerline row. It utilizes a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component employs a low-profile insulator body and is designed for vertical straddle mount installation. Contact plating is gold, and the housing material is diallyl phthalate (DAP).

Feature Summary

• Single centerline row configuration with 0.156 inch contact spacing.
• Low profile insulator body design.
• Vertical straddle mount installation style.

Applications

• Card edge interconnects in computing systems.
• Storage device connections.
• Industrial control board interfaces.

Procurement Notes

Verify the specific datasheet version for the 306-032-420-112 to confirm current RoHS compliance status and detailed mechanical dimensions. Ensure that the target application requires the 0.156-inch pitch and 0.062-inch board thickness compatibility specified by this part number before procurement.

Selection Notes

Select this component when a single-row, high-density connection is required for 0.062-inch thick PCBs. The straddle mount option provides stability without mounting lugs. Verify that the operating environment temperature range aligns with the connector's rated specifications.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in providing reliable interconnect solutions for various electronic applications. The manufacturer specializes in complex interconnect products for global distribution channels.

Replacement Considerations

Compatible substitutes within the same series include parts with matching 32-position counts and 0.156-inch pitch, such as the 306-032-420-102 or 306-032-420-111, provided they meet the specific mounting and board thickness requirements.
