Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

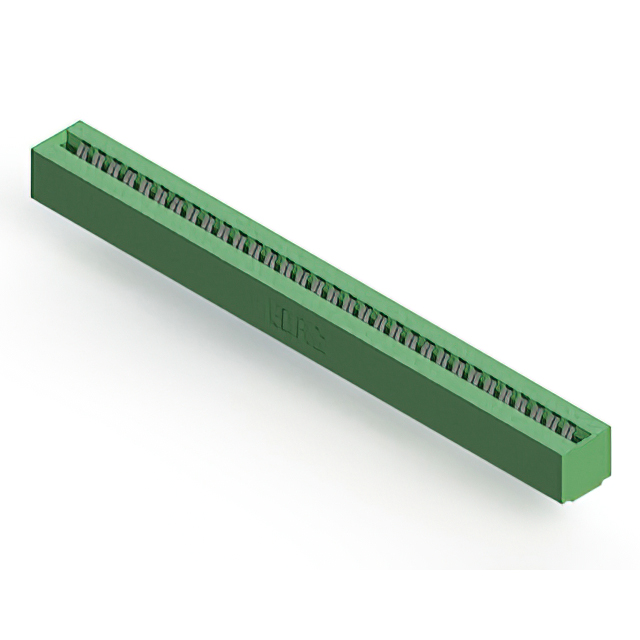

The EDAC Inc. model 306-032-421-101 is a standard card edge connector receptacle designed for panel mount installation. It features a dual female configuration with 64 positions arranged in two rows, providing a total of 64 contact points. The connector utilizes a 3.96 mm (0.156 inch) pitch and supports PCB thicknesses ranging from 1.37 mm to 1.78 mm. Termination is achieved via solder pins, and the contacts are constructed from copper alloy with gold plating to ensure reliable electrical performance.
Feature Summary
- Dual female contact configuration for secure board insertion
- Gold-plated copper alloy contacts for corrosion resistance
- Panel mount design with vertical orientation
- Thermoplastic polyester insulator housing
Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Test and measurement instrument interfaces
- Computing hardware peripheral connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, termination type, and mounting style. Ensure compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Confirm that the required current rating aligns with the system's operational demands before finalizing procurement.
Selection Notes
Select this component when a high-density connection with a 3.96 mm pitch is required for panel-mounted applications. The dual-row female design accommodates double-sided edge cards. Verify that the gold-plated contacts meet the environmental requirements for the intended operating conditions and mating cycles.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-032-421-101 specifically addresses the need for a 64-position dual-row interface with robust mechanical stability for industrial environments.
Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for direct substitutes with different position counts or termination styles. Cross-reference with other manufacturers' 3.96 mm pitch card edge connectors only if mechanical dimensions and electrical ratings are identical.
