Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

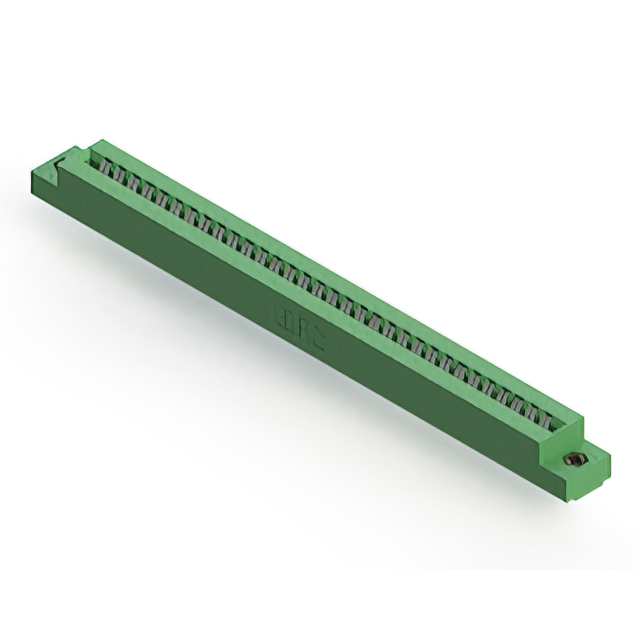

The EDAC Inc. 306-032-421-108 is a standard card edge connector receptacle designed for panel mount installation. It features 64 positions with a 3.96 mm (0.156 inch) pitch, accommodating dual-edge PCBs within a thickness range of 1.37 mm to 1.78 mm. The connector utilizes copper alloy contacts with tin plating and a green thermoplastic polyester insulator. Rated for 5 A current, it supports solder pin termination and operates between -40°C and 105°C.
Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Panel mount design with vertical orientation for structural stability
- Thermoplastic polyester housing provides thermal resistance and durability
Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Test and measurement instrument interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating and insulation material specifications. Ensure the target PCB thickness falls within the 1.37 mm to 1.78 mm operational range. Confirm that the panel mounting hole dimensions align with the connector's flange requirements for proper mechanical fit.
Selection Notes
Select this component when a dual-edge card interface is required with a 3.96 mm pitch. The tin-plated contacts offer cost-effective conductivity suitable for general-purpose applications. Consider the vertical panel mount style if space constraints require a direct board-to-panel connection rather than a right-angle or surface-mount solution.
Part Context
This part belongs to the EDAC 306 Series, a line of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly needs. The 306-032-421-108 specifically addresses applications requiring 64-position dual-edge connectivity with robust panel mounting capabilities.
Replacement Considerations
Compatible substitutes include other EDAC 306 series parts with matching 64-position dual-edge specifications. Verify that alternative components maintain the same 3.96 mm pitch and compatible PCB thickness range to ensure mechanical interchangeability without redesigning the host panel.
