Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

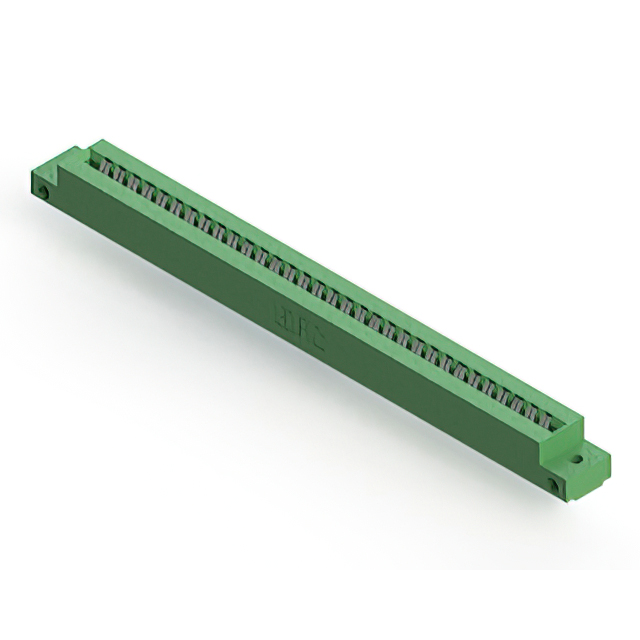

The EDAC Inc. 306-032-421-112 is a dual-edge female card edge connector designed for through-hole mounting. It features 64 positions with a 0.156-inch (3.96mm) contact spacing. The connector utilizes tin-plated contacts and a green thermoplastic polyester insulator body. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). This component belongs to the 306 series and is suitable for applications requiring reliable signal transmission in standard board configurations.
Feature Summary
- Dual-edge female contact configuration for secure board insertion
- Through-hole termination method for robust PCB attachment
- Tin-plated contacts ensuring corrosion resistance
- Green thermoplastic polyester housing for insulation stability
Applications
- General-purpose electronic equipment interconnects
- Industrial control system backplanes
- Telecommunications hardware modules
- Consumer electronics internal board connections
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm plating type and flange characteristics. Ensure the target application supports the 0.156-inch pitch and 0.062-inch board thickness requirements. Confirm RoHS compliance status if restricted materials are prohibited in the final assembly process.
Selection Notes
Select this model when a dual-edge female connector with 64 positions is required. The 0.156-inch spacing accommodates standard trace widths. Tin plating is suitable for non-high-frequency, low-corrosion environments. Verify that the mechanical fit allows for the specified board thickness range during the design phase.
Part Context
This component is part of the EDAC 306 series of card edge connectors. The series offers various position counts and spacing options. The 306-032 variant specifically addresses the need for 64-position connectivity. It serves as a standard interface solution within the broader EDAC product portfolio for edgeboard applications.
Replacement Considerations
The 316-032-421-112 is a confirmed substitute offering identical positioning but with tin plating instead of gold. Verify that the change in contact material does not impact the electrical performance or environmental durability requirements of the specific application.
