306-032-500-101

Overview

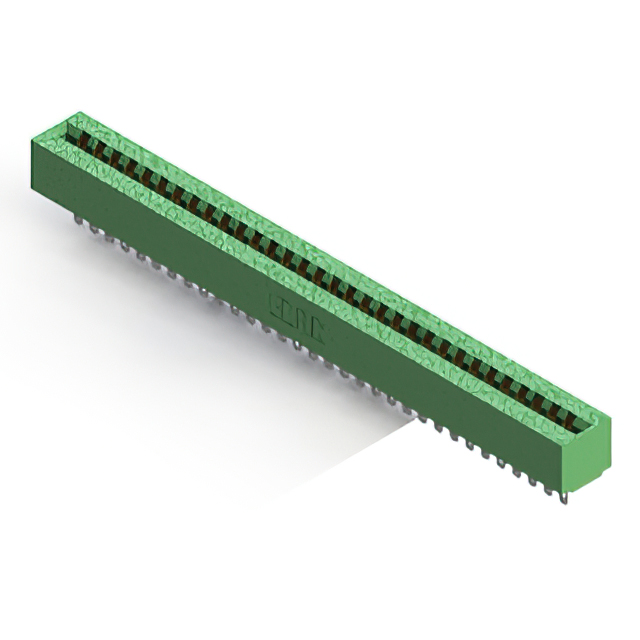

The EDAC Inc. 306-032-500-101 is a dual-edge female card edge connector designed for panel mounting. It features 64 positions with a 0.156-inch (3.96mm) contact spacing across two rows. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. It accepts printed circuit boards with a thickness ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). The unit employs a wire wrap termination method and operates within a temperature range of -40°C to 105°C.

Feature Summary

• Dual-edge female configuration for non-specified card types
• Gold-plated copper alloy contacts for reliable signal transmission
• Green thermoplastic polyester insulator body
• Wire wrap termination for secure PCB connection

Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment board connections
• Test and measurement instrumentation interfaces
• Automotive electronics modules

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required board thickness and termination style. Confirm that the dual-edge design aligns with the target application's mechanical constraints. Check RoHS compliance status if environmental regulations apply. Ensure the supplier provides official datasheets for dimensional accuracy validation before integration into final assemblies.

Selection Notes

Select this component when a high-density, dual-sided connection is necessary for standard thickness cards. The 0.156-inch pitch offers a balance between density and ease of manufacturing. Consider the wire wrap termination if through-hole soldering is not preferred or if reworkability is a priority. Evaluate the operating temperature range against the expected environmental conditions of the deployment site.

Part Context

This part belongs to the EDAC 306 series, which specializes in card edge connectors. The series is characterized by its low-profile insulator bodies and standardized spacing options. The 306 series is widely used in applications requiring durable, high-cycle connectivity solutions for edge-board interfaces in various electronic systems.

Replacement Considerations

Direct substitutes include other EDAC 306 series variants with matching pin counts and spacing. Cross-reference dimensions carefully when considering competitors. Ensure equivalent material properties and termination methods are maintained to preserve mechanical integrity and electrical performance.
