Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

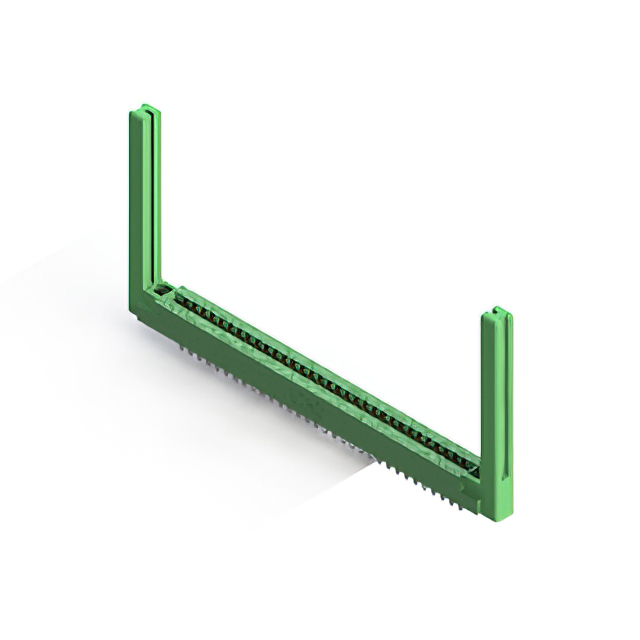

The EDAC Inc. 306-032-500-158 is a dual-edge female card edge connector featuring 64 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes gold-plated wire hole contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component employs a low-profile insulator body and is designed for panel mounting applications.
Feature Summary
- Dual-edge female configuration with 64 positions
- Gold-plated wire hole contact termination
- Accepts 0.062 inch nominal PCB thickness
- Low-profile insulator body design
Applications
- Industrial control systems
- Telecommunications equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific ordering suffix to ensure correct flange, termination, and plating specifications match the design requirements. Confirm that the target PCB thickness falls within the accepted range of 0.062 inches. Check RoHS compliance status if environmental regulations apply to the assembly. Ensure the supplier provides official datasheets for dimensional verification before finalizing the purchase order.
Selection Notes
Select this connector when a high-density dual-edge interface with 0.156-inch spacing is required. The wire hole termination method offers robust mechanical stability compared to surface mount options. Consider the low-profile body height if vertical clearance in the enclosure is limited. Verify compatibility with existing board guide solutions and mounting hardware constraints.
Part Context
This component belongs to the EDAC 306 Series, which specializes in card edge connectors with 0.156-inch contact spacing. The series includes various configurations for different PCB thicknesses and mounting styles. The 306-032 variant specifically addresses applications requiring 64 positions in a dual-edge format.
Replacement Considerations
Cross-reference part numbers within the EDAC 306 series for alternative flange or termination options. Verify dimensional compatibility with existing panel cutouts and board guides. Ensure electrical ratings and material specifications meet the original design intent.
