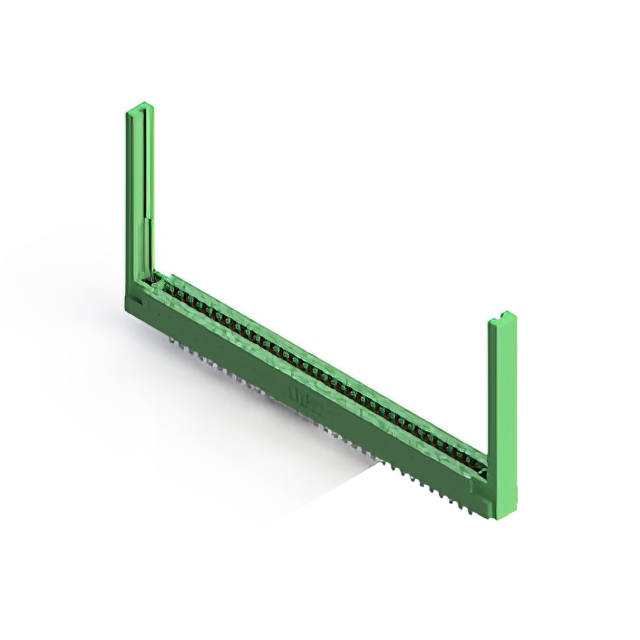

306-032-500-168

$16.70

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:4f7822530660 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-500-168

Overview

The EDAC Inc. 306-032-500-168 is a dual-edge female card edge connector designed for board-to-board interconnection. It features 64 positions with a contact spacing of 0.156 inches (3.96mm). The connector utilizes gold-plated contacts and is housed in a green insulator made of high-temperature material. It supports a card thickness range of 0.051 to 0.071 inches (1.30mm to 1.80mm) and operates within a temperature range of -55°C to 85°C.

Feature Summary

Dual-edge female configuration for secure board insertion
Gold-plated contacts ensure reliable signal transmission
High-temperature resistant insulator body for thermal stability

Applications

Industrial control systems requiring robust edge connections
Communication equipment backplanes
Medical device circuit boards

Procurement Notes

Verify the specific ordering suffix to confirm contact plating, insulation color, and termination style match the design requirements. Ensure the target PCB card thickness falls within the specified mechanical limits to guarantee proper mating force and electrical continuity during assembly.

Selection Notes

Select this component when a dual-edge interface with 0.156-inch spacing is required. Consider the 64-position count and green housing availability. Evaluate the operating temperature range against environmental conditions and verify compatibility with standard wave soldering or selective soldering processes used in the manufacturing line.

Part Context

This part belongs to the EDAC 306 series of edgeboard connectors. The series offers various configurations including single and dual-edge options with different pin counts and spacing standards. The 306 series is engineered for applications demanding durable connections in industrial and commercial environments.

Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative pin counts or spacing. Verify mechanical footprint and electrical specifications before substituting with generic equivalents to ensure compatibility with existing PCB layouts.
