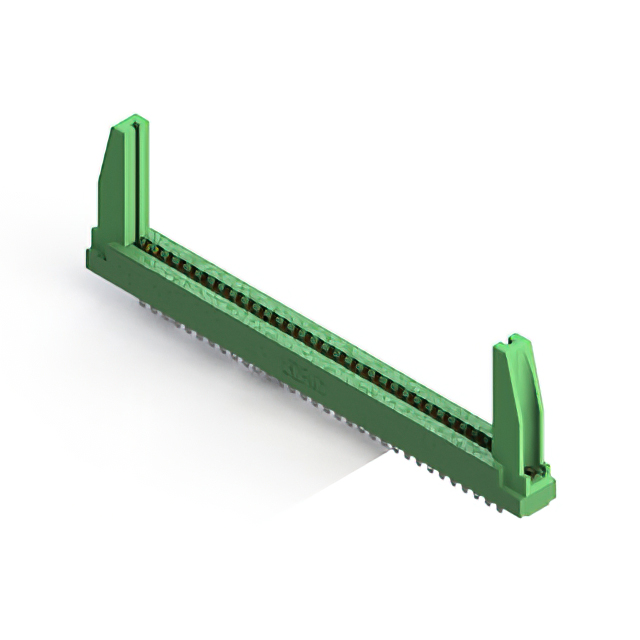

306-032-500-178

$16.70

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:d1831614816f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-500-178

Overview

The EDAC Inc. 306-032-500-178 is a standard card edge connector receptacle featuring 64 positions in a dual female configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a thickness ranging from 1.37 mm to 1.78 mm. The component employs copper alloy contacts with gold plating for reliable signal transmission, rated at 5 A current capacity. Designed for through-hole termination, it offers vertical mounting orientation within the 306 series.

Feature Summary

Dual-sided female contact configuration for comprehensive board interface
Gold-plated copper alloy contacts ensure durable electrical connectivity
Thermoplastic polyester insulator body provides structural stability

Applications

Industrial control system interconnections
Telecommunications equipment backplanes
Consumer electronic module interfaces

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm mechanical dimensions and termination style. Ensure compatibility with target PCB thickness specifications before integration. Confirm RoHS compliance status via the manufacturer datasheet. Cross-reference the full part number with authorized distributor catalogs to validate current availability and sourcing channels.

Selection Notes

Select this component when a high-density dual-row connection is required for thick PCBs up to 1.78 mm. The 3.96 mm pitch accommodates robust signal routing needs. Verify that the vertical panel mount style aligns with enclosure design constraints. Ensure the 5 A rating meets the application's power distribution requirements without derating.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its .156 inch contact spacing and low-profile insulator bodies. It is designed to accept nominal 1.57 mm thick PCBs, providing a standardized solution for edgeboard applications across various industrial and commercial sectors.

Replacement Considerations

Consult the EDAC 306 Series Ordering Guide for direct substitutes with differing position counts or termination styles. Verify mechanical fit and electrical ratings before adopting alternative part numbers from the same manufacturer family.
