Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

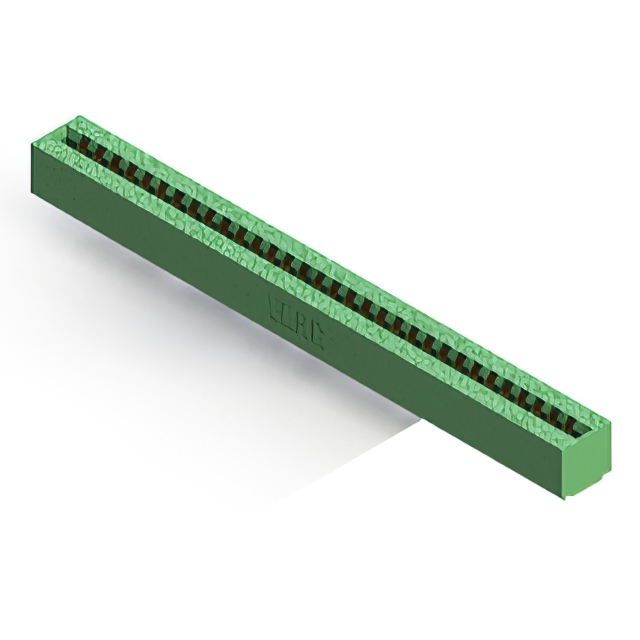

The EDAC Inc. 306-032-520-101 is a standard card edge connector featuring 64 positions with a 3.96 mm (0.156 inch) contact spacing. Designed for dual-edge mating, it accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. This vertical panel-mount component operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual female configuration designed for simultaneous connection to both edges of a single PCB
- Low profile insulator body constructed from thermoplastic material
- Vertical mounting style intended for secure panel installation
Applications
- Industrial control systems requiring robust board-to-panel connections
- Communication equipment utilizing standard card edge interfaces
- Consumer electronics manufacturing involving modular PCB assembly
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm exact pin count and termination type. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the vertical panel mount orientation aligns with the mechanical design requirements of the final enclosure.
Selection Notes
Select this component when a dual-sided connection is required for a 64-position interface. The 3.96 mm pitch dictates the trace routing density on the host PCB. Verify that the operating temperature range of -40°C to +105°C meets the environmental conditions of the deployment site. Ensure the panel cutout dimensions accommodate the vertical housing profile.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and termination options for general-purpose electronic applications. The 306 series is characterized by its low-profile design and reliable gold-plated contact system suitable for repeated insertion cycles in industrial environments.
Replacement Considerations
Direct substitutes must match the 64-position count, 3.96 mm pitch, and dual-edge female configuration. Verify that alternative components support the same 1.57 mm PCB thickness and vertical panel mount style to maintain mechanical compatibility.
