Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

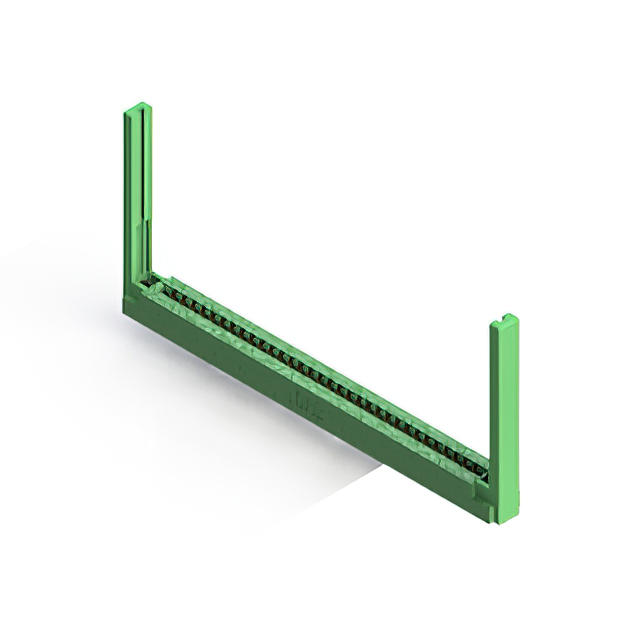

The EDAC Inc. part number 306-032-520-168 is a standard card edge connector from the 306 series, designed for dual female termination on printed circuit boards. It features 64 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The connector accepts a nominal PCB thickness of 0.062 inches (1.57 mm) and utilizes gold-plated copper alloy contacts for reliable signal transmission. Constructed with a thermoplastic insulator body, this component supports vertical panel mounting configurations.
Feature Summary
- Dual female contact configuration for secure board insertion
- Gold-plated copper alloy terminals ensure corrosion resistance
- Thermoplastic insulator body provides structural stability
Applications
- Medical interconnect solutions such as ventilators
- Ambulance communication systems
- CPAP machine connections
- General industrial equipment interfaces
Procurement Notes
Verify the specific ordering suffix to confirm the exact pin count and termination style required for your design. Ensure compatibility with the target PCB thickness of 0.062 inches before finalizing procurement. Cross-reference the manufacturer datasheet to validate that the dual-row configuration aligns with your circuit layout requirements.
Selection Notes
Select this component when a robust, high-density connection is needed for medical or industrial applications. The 0.156-inch pitch allows for substantial current handling capabilities compared to finer pitches. Consider the vertical panel mount style if space constraints require a perpendicular interface orientation relative to the mating board.
Part Context
This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various row counts and termination options to accommodate diverse electronic assembly needs. It is widely utilized in sectors requiring durable interconnects, including healthcare and energy infrastructure.
Replacement Considerations
Consult official EDAC documentation for direct substitutes within the 306 series. Verify that any alternative maintains the same 0.156-inch pitch and dual female contact architecture to ensure mechanical and electrical compatibility.
