306-032-521-101

$14.38

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:c17d918f152a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-521-101

Overview

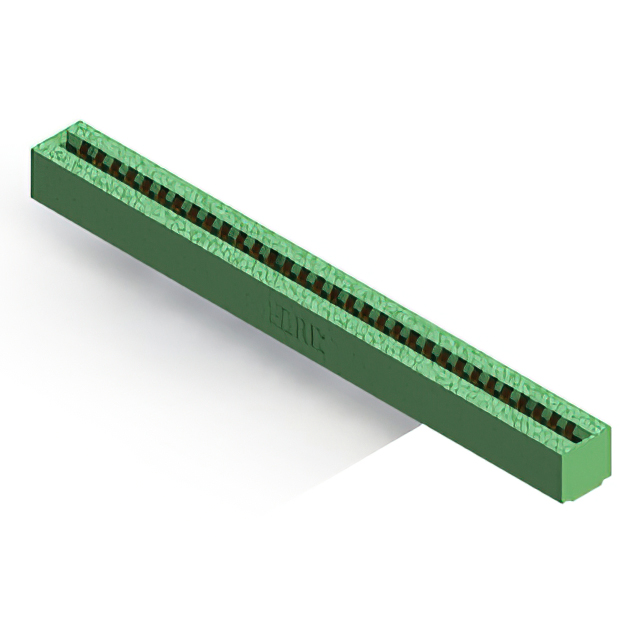

The EDAC Inc. 306-032-521-101 is a standard card edge connector header featuring 32 positions with a 3.96 mm pitch. Designed for vertical panel mounting, it accommodates printed circuit boards with a nominal thickness of 1.57 mm. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. This component belongs to the 306 series and utilizes a thermoplastic insulator body.

Feature Summary

Single centerline row configuration designed for standard card edge applications
Low profile insulator body construction for compact integration
Vertical mounting style optimized for panel installation

Applications

Industrial control system interconnections
Communication equipment backplanes
Consumer electronic module interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count and termination type. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm RoHS compliance status directly with the supplier documentation as regulatory requirements may vary by region.

Selection Notes

Select this component when a single-row header with a 3.96 mm pitch is required for vertical panel mounting. It is suitable for applications demanding gold-plated contacts on copper alloy substrates. Verify that the mating card edge board meets the specified 1.57 mm thickness tolerance for proper engagement.

Part Context

This part belongs to the EDAC 306 series of card edge connectors, which are characterized by their .156 inch contact spacing. The series offers various position counts and termination options, providing standardized solutions for connecting edge-board modules in electronic assemblies requiring robust mechanical retention.

Replacement Considerations

Direct substitutes within the same series include variations such as 306-032-521-103 or 306-032-521-107, which share identical pitch and form factor but may differ in termination style or specific housing material specifications. Cross-series replacements require careful verification of dimensional tolerances.
