Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 64POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：32
- Number of Positions：64
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

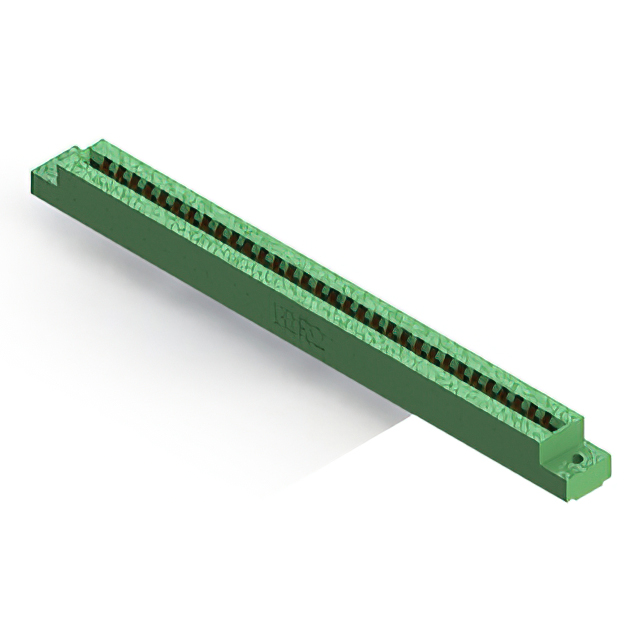

The EDAC Inc. 306-032-521-102 is a standard card edge connector designed for dual-edge board applications. It features 64 positions with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body. The unit supports a current rating of 5 A and offers an insulation resistance of 5 GOhms.
Feature Summary
- Accepts .062 inch nominal thickness PCBs
- Low profile insulator body design
- Single centreline row configuration
Applications
- Dual-edge card edge interconnections
- Panel mount installations
- High-density electronic assemblies
Procurement Notes
Verify the specific suffix code to confirm plating thickness, housing color, and termination style. Confirm that the required PCB thickness aligns with the 0.062-inch specification. Ensure the application environment does not exceed the thermal limits defined in the official datasheet. Cross-reference the manufacturer part number against authorized distributor lists to avoid counterfeit components.
Selection Notes
Select this component when a dual-edge connector with 3.96 mm spacing is required. The low-profile design suits space-constrained enclosures. Verify compatibility with the target PCB thickness of 0.062 inches. Consider the 5 A current rating for power distribution needs. Ensure the mounting style matches the panel or chassis requirements.
Part Context
This part belongs to the EDAC 306 series of edgeboard connectors. The series provides various options for contact terminations, mounting styles, and card guide solutions. The 306 series is engineered for reliable performance in demanding industrial and commercial environments. It supports both single and dual-edge configurations with multiple row counts.
Replacement Considerations
The 306-032-520-102 is a related variant within the same series. Verify if the alternative suffix meets the exact mechanical and electrical requirements. Check for differences in housing color or specific termination details before substitution.
