306-032-521-103

$16.10

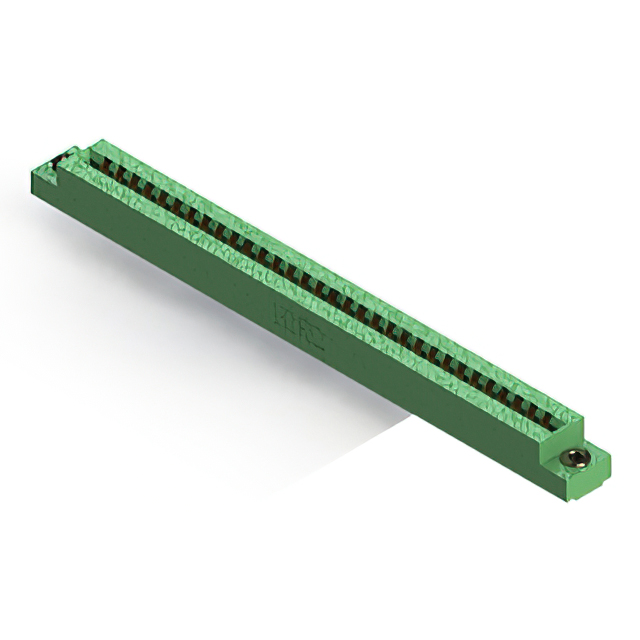

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:e3632f26cd9a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-521-103

Overview

The EDAC Inc. 306-032-521-103 is a dual-edge female card edge connector designed for through-hole panel mounting. It features 64 positions with a 0.156-inch (3.96mm) contact spacing and gold-plated contacts. The unit accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37 to 1.78mm). Constructed with thermoplastic polyester insulation, it operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Feature Summary

Dual-edge female configuration with gold-plated contacts
Through-hole termination for secure panel installation
Thermoplastic polyester insulator body construction

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Test and measurement instrument modules

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating and board thickness compatibility. Ensure that the target application PCB dimensions align precisely with the specified acceptance range. Confirm compliance requirements such as RoHS3 status prior to final procurement decisions.

Selection Notes

Select this component when a dual-edge female interface with 0.156-inch spacing is required for panel-mounted applications. Verify that the target PCB thickness falls within the 0.054 to 0.070-inch operational window. Consider the through-hole mounting style and thermoplastic polyester material properties for environmental suitability.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and termination options for general-purpose electronic interconnects. The 306-032-521-103 specifically addresses high-density dual-edge connection needs in industrial environments.

Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Generic equivalents may not match the precise mechanical tolerances or contact plating specifications required for reliable operation.
