306-032-521-112

$15.46

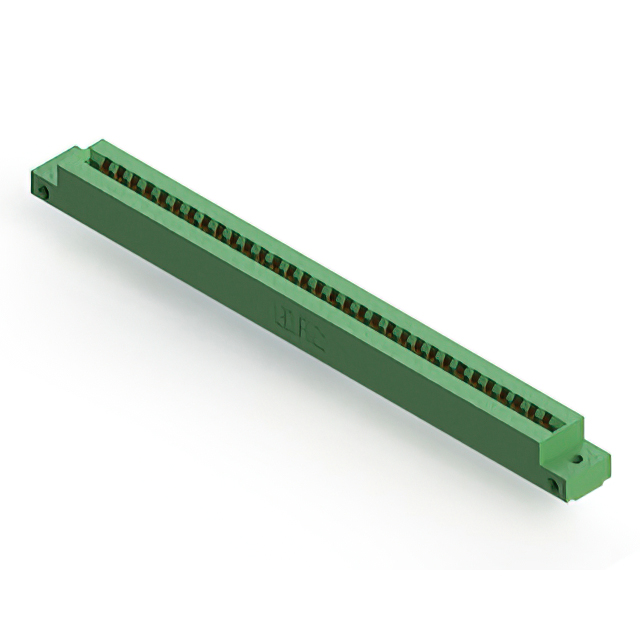

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:0d86c2523071 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 64POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：64
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-032-521-112

Overview

The EDAC Inc. 306-032-521-112 is a standard card edge connector from the 306 series, designed for dual-edge board applications. It features 64 positions with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes female contacts with gold plating and is housed in a green thermoplastic insulator body.

Feature Summary

Accepts 0.062 inch nominal thickness PCBs
Low profile insulator body design
Single centerline row configuration

Applications

Dual-edge card edge interconnections
Panel mount vertical installations
Standard card edge connector applications

Procurement Notes

Verify the specific ordering suffix to confirm color and termination details. Ensure compatibility with 0.062 inch board thickness. Confirm RoHS compliance status through official manufacturer documentation before procurement.

Selection Notes

Select this component for dual-edge applications requiring 0.156 inch spacing. Verify that the target PCB thickness matches the 0.062 inch specification. Check if the low profile design meets spatial constraints.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306 series is characterized by its single centerline row and acceptance of 0.062 inch boards.

Replacement Considerations

Cross-reference with other EDAC 306 series parts for different position counts. Verify mechanical fit and electrical requirements against alternative suppliers' dual-edge connectors.
