306-033-400-102

Overview

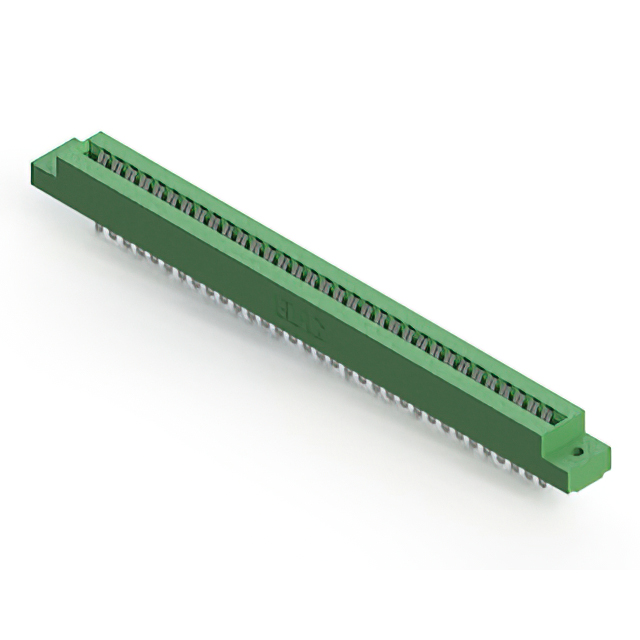

The EDAC Inc. 306-033-400-102 is a standard card edge connector designed for panel mount applications with a vertical orientation. It features a dual female contact configuration providing 66 positions. The connector utilizes a 0.156-inch (3.96 mm) pitch and accommodates a board thickness of 1.57 mm. Contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. The housing is made of thermoplastic material, offering an insulation resistance of 5 gigaohms. The component supports a current rating of 5 amperes and complies with RoHS standards.

Feature Summary

• Dual female contact arrangement for secure card edge interface
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic housing providing structural integrity and insulation
• Vertical panel mount design for fixed installation

Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with the target PCB edge card dimensions, particularly the 1.57 mm thickness requirement. Confirm that the 5 A current rating meets the application's electrical load requirements. Check for RoHS compliance documentation if environmental regulations apply to the end product.

Selection Notes

Select this connector when a high-density 66-position interface is required for vertical panel mounting. The 0.156-inch pitch allows for substantial spacing between contacts, reducing crosstalk risks in high-noise environments. The gold-plated contacts are suitable for applications requiring frequent mating cycles or corrosion resistance. Ensure the mating card edge thickness aligns precisely with the connector's specified 1.57 mm tolerance for optimal mechanical retention.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options for diverse electronic assembly needs. The 306-033-400-102 variant specifically addresses applications requiring robust dual-sided connectivity with a vertical form factor. It serves as a critical interface element in systems where reliable data and power transfer between circuit boards and backplanes is essential.

Replacement Considerations

Cross-reference part numbers within the EDAC 306 series for alternative position counts or termination styles. Verify that any substitute maintains the same 0.156-inch pitch and 1.57 mm board thickness compatibility. Ensure equivalent current ratings and insulation resistance values are met by potential replacements.
