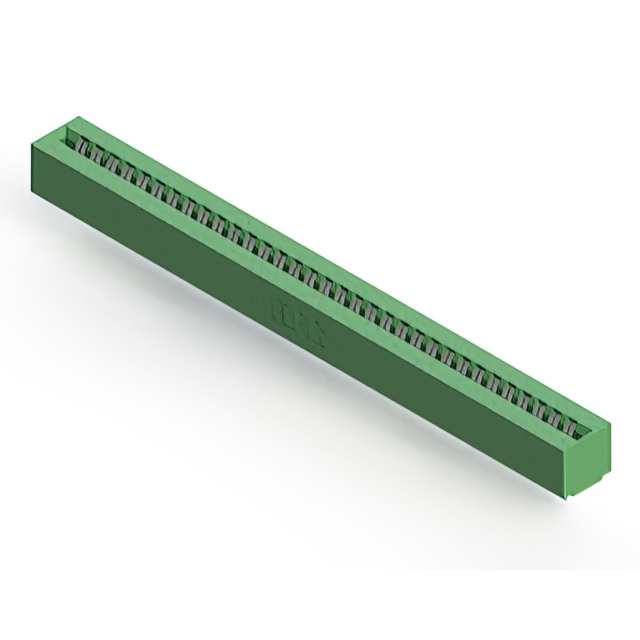

306-033-420-101

$14.75

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk

SKU:76e30bebd962 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：33
Number of Positions：66
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-033-420-101

Overview

The EDAC Inc. 306-033-420-101 is a standard card edge connector from the 306 series, designed for dual-edge board insertion. It features 66 positions with a 0.156-inch (3.96 mm) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes tin-plated copper alloy contacts rated for 5 A current and offers an insulation resistance of 5 Gohms. Constructed with a green thermoplastic housing, it employs panel mount installation at a vertical angle to ensure secure electrical interconnection.

Feature Summary

Dual-edge female connector design for robust board retention
Tin-plated copper alloy contacts for reliable conductivity
Vertical panel mount configuration for stable integration

Applications

Industrial control systems requiring high-density connections
Telecommunications equipment backplanes
Computing hardware motherboards and expansion cards

Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm plating type and housing color variations. Ensure the target application accommodates the 1.57 mm maximum PCB thickness specification. Confirm that the 5 A current rating aligns with the system's power requirements before finalizing procurement orders.

Selection Notes

Select this component when a dual-edge interface is required for high-pin-count applications. The 3.96 mm pitch provides ample spacing for signal integrity in dense layouts. Consider the tin plating option if cost efficiency is prioritized over extended corrosion resistance compared to gold-plated alternatives.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-033-420-101 specifically addresses needs for 66-position dual-edge connectivity with panel mounting capabilities, fitting within broader industrial connector families.

Replacement Considerations

Cross-reference with other 306-series variants such as 306-033-420-102 or 306-033-420-158 for alternative plating or color options. Verify mechanical compatibility with existing PCB layouts and panel cutouts before substituting.
