Product Detailed Parameters

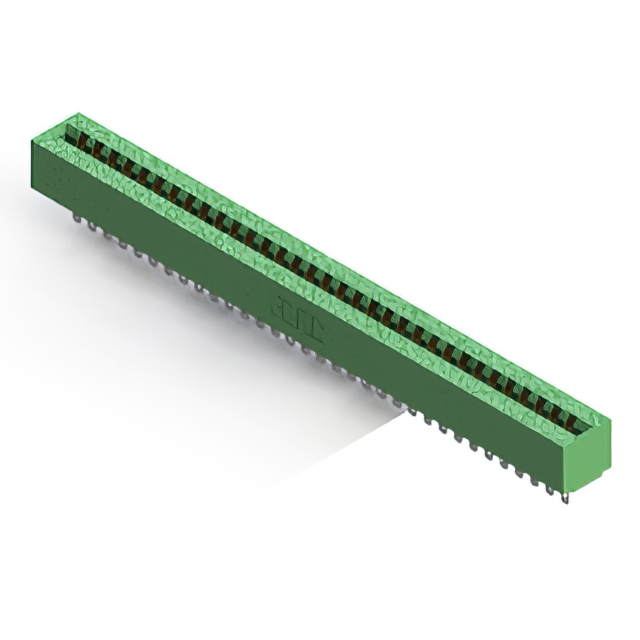

- Description：CONN EDGE DUAL FMALE 66POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：66
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Free Hanging (In-Line)
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview
The EDAC Inc. 306-033-500-101 is a standard card edge connector designed for panel mounting applications. It features a vertical orientation with a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. The component provides 66 positions via dual-edge female contacts, which are gold-plated copper alloy. Rated for 5 A current, it utilizes a thermoplastic housing and offers an insulation resistance of 5 Gohms.
Feature Summary
- Dual-edge female contact configuration for secure board engagement
- Gold-plated copper alloy contacts ensuring reliable conductivity
- Thermoplastic housing material for structural integrity
Applications
- Panel-mounted electronic assemblies requiring card edge interfaces
- Industrial control systems utilizing dual-edge board connections
- Equipment needing high-current signal transmission at 5 A rating
Procurement Notes
Verify the specific part number against official EDAC documentation to confirm compatibility with your system requirements. Ensure that the panel mounting style and vertical orientation align with your mechanical design constraints. Cross-reference the 66-position count and 3.96 mm pitch with your PCB layout specifications before procurement.
Selection Notes
Select this connector when a dual-edge female interface is required for panel-mount installations. The 5 A current rating and gold plating make it suitable for applications demanding stable electrical performance. Confirm that the target circuit board thickness matches the specified 1.57 mm requirement for proper fit and contact reliability.
Part Context
This component belongs to the EDAC 306 series of card edge connectors. The series is characterized by robust construction and standardized dimensions for industrial connectivity. The 306-033-500-101 variant specifically addresses needs for higher position counts and dual-edge engagement within the family lineup.
Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the precise 3.96 mm pitch or dual-edge geometry required for this specific application.
