306-033-500-158

Overview

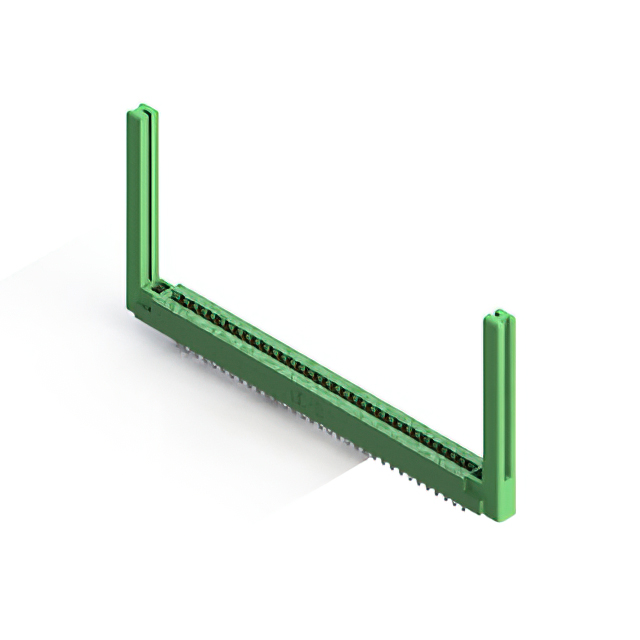

The EDAC Inc. 306-033-500-158 is a dual female edgeboard connector featuring 66 positions with a 0.156-inch (3.96mm) contact spacing. Designed for panel mounting, it utilizes gold-plated contacts and a green thermoplastic polyester insulator. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). It operates within a temperature range of -40°C to 105°C and includes flush mount flanges with top openings and threaded inserts.

Feature Summary

• Dual female configuration with 66 total positions
• Gold-plated contacts for reliable signal transmission
• Flush mount flange design with threaded insert options
• Compatible with 0.062 inch nominal thickness PCBs

Applications

• Industrial control systems requiring robust panel connections
• Medical interconnect solutions demanding high reliability
• Agricultural technology equipment operating in harsh environments
• General-purpose electronic assemblies needing secure edgeboard interfaces

Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact flange threading and termination style. Confirm that the required PCB thickness aligns with the 0.062-inch specification. Check current availability status as lead times may vary. Ensure compliance with RoHS3 standards if required by your project specifications before finalizing procurement orders.

Selection Notes

Select this component when a dual-sided female connection is required for standard thickness boards. The 0.156-inch pitch suits applications prioritizing mechanical stability over high-density routing. Consider the panel mount requirement and available space for the flush flange profile. Verify that the operating temperature range meets the environmental conditions of the intended deployment site.

Part Context

This part belongs to the EDAC 306 series, which provides versatile edgeboard connector solutions. The series offers various position counts and termination styles to accommodate different board designs. The 306 series is widely used across multiple industries due to its durable construction and standardized dimensions, ensuring compatibility with common PCB layouts.

Replacement Considerations

Consult the official EDAC 306 Series Ordering Guide for direct substitutes with differing pin counts or termination types. Cross-reference compatible parts from NorComp or Northern Technologies if sourcing from acquired brand portfolios. Ensure any replacement maintains the same 0.156-inch pitch and dual female configuration.
