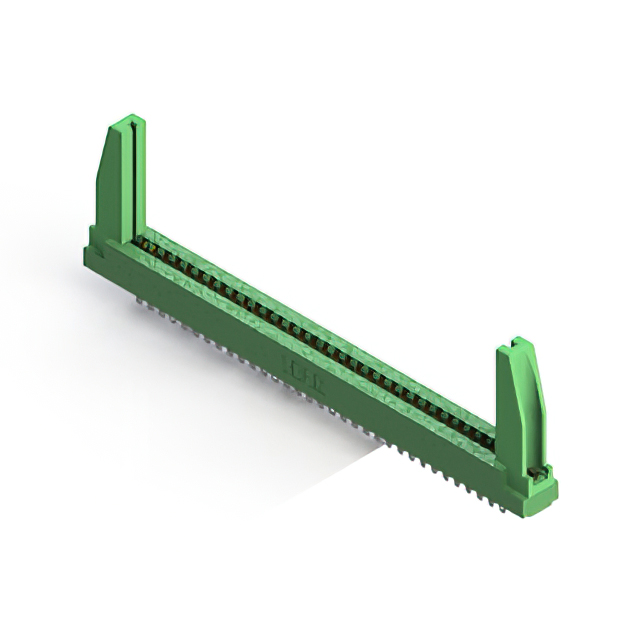

306-033-500-178

$17.07

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:f60c6251848f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：33
Number of Positions：66
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-033-500-178

Overview

The EDAC 306-033-500-178 is a standard card edge connector from the 306 series, designed for dual-edge board insertion. It features 66 positions with a 0.156-inch (3.96 mm) pitch and supports PCB thicknesses between 1.37 mm and 1.78 mm. The connector utilizes copper alloy contacts with gold plating and operates within a temperature range of -40°C to +105°C. Rated for 5 A current, it employs a thermoplastic polyester housing and offers panel mounting with vertical orientation.

Feature Summary

Dual-edge female contact configuration for secure board retention
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester housing provides thermal stability
Vertical panel mount design facilitates structured integration

Applications

Industrial control system interconnects
Telecommunications equipment backplanes
Medical device circuit board interfaces
Energy management system modules

Procurement Notes

Verify part number accuracy against official EDAC documentation before procurement. Confirm that the specific suffix matches required mechanical tolerances. Ensure compliance with RoHS3 standards if applicable. Check regional availability as distribution may vary. Validate environmental ratings against operational requirements.

Selection Notes

Select this component when dual-edge connectivity with high pin counts is required. The 3.96 mm pitch accommodates standard board thicknesses. Verify that the vertical panel mount style aligns with chassis constraints. Ensure the 5 A rating meets circuit load demands. Confirm compatibility with mating card edge specifications.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by robust construction and versatile mounting options. The 306-033-500-178 variant specifically addresses applications requiring dense dual-edge connections with standardized spacing parameters.

Replacement Considerations

Cross-reference with other EDAC 306 series variants for position count differences. Verify mechanical dimensions and electrical ratings match before substitution. Consult official EDAC ordering guides for compatible alternatives.
