306-033-520-112

Overview

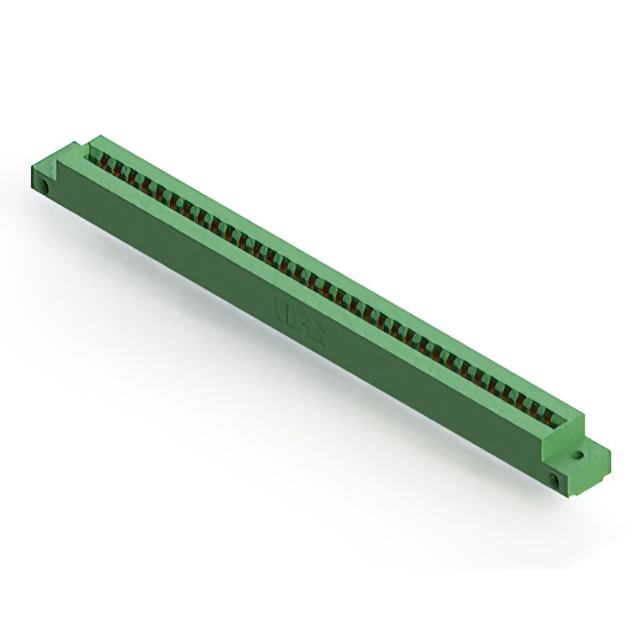

The EDAC Inc. 306-033-520-112 is a standard card edge connector designed for panel mounting applications. It features a dual female configuration with 66 positions, providing robust interconnect capabilities. The connector utilizes a 0.156-inch (3.96 mm) pitch and supports a board thickness of 1.57 mm. Constructed with copper alloy contacts that are gold-plated, it ensures reliable signal transmission with a current rating of 5 A. The housing is made from thermoplastic material, offering an insulation resistance of 5 Gohms.

Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic housing providing high insulation resistance

Applications

• Panel-mounted electronic assemblies requiring high-density connections
• Industrial control systems utilizing card edge interface standards
• Communication equipment backplanes and modular sub-systems

Procurement Notes

Verify the specific suffix code against the manufacturer's official datasheet to confirm pin count, orientation, and termination style. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the 5 A current rating meets the circuit requirements. Confirm RoHS compliance status through the latest component documentation before procurement.

Selection Notes

Select this component when a vertical, panel-mount solution is required for 66-position card edge interfaces. The 0.156-inch pitch accommodates standard double-sided boards. Consider the gold plating for environments requiring corrosion resistance. Verify that the thermoplastic housing material aligns with thermal management needs and mechanical stress requirements of the assembly.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various design options to tailor interconnect requirements. The 306 series is characterized by its versatility in position counts and mounting styles, serving as a foundational component for general-purpose electronic interconnects in industrial and commercial applications.

Replacement Considerations

Cross-reference with EDAC part number 306-033-520-104, which shares the same 66-position dual female specification and 0.156-inch pitch. Verify that any substitute maintains the identical panel mount orientation and thermoplastic housing characteristics to ensure mechanical fit.
