306-033-520-158

$17.07

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:d6552b7af0ed Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 66POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：33
Number of Positions：66
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-033-520-158

Overview

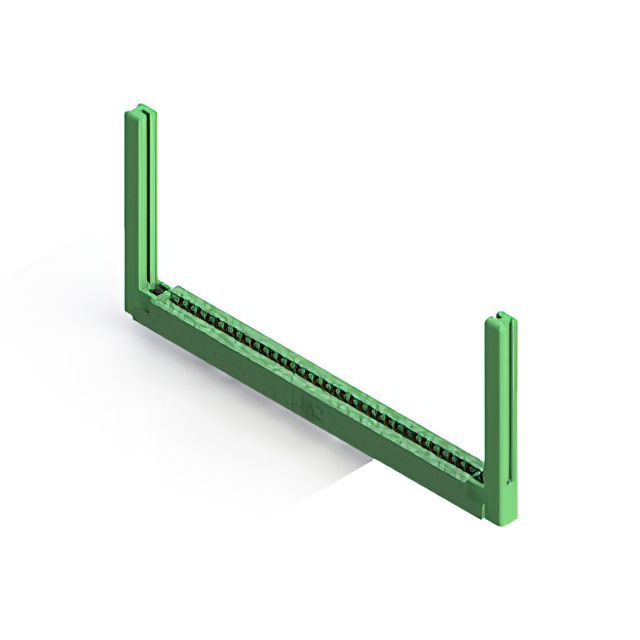

The EDAC Inc. 306-033-520-158 is a dual-edge female card edge connector with 66 positions and a 0.156-inch (3.96mm) contact spacing. It features gold-plated cantilever contacts, a green thermoplastic polyester insulator, and panel mount installation. The connector accepts PCBs with thicknesses between 0.054 and 0.070 inches. It operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.

Feature Summary

Dual-edge configuration for high-density interconnect applications
Gold-plated cantilever contacts ensure reliable signal transmission
Panel mount design with flanged mounting holes for secure installation

Applications

Industrial control systems requiring robust board-to-board connections
Communication equipment utilizing standard thickness PCBs
Consumer electronics assemblies needing durable edge connectors

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 306 Series Ordering Guide to confirm termination type, plating thickness, and mounting style. Ensure compatibility with target PCB dimensions and thermal requirements before procurement. Cross-reference the full part number with distributor catalogs to avoid substitution errors.

Selection Notes

Select this component when a dual-sided connection is required for standard thickness circuit boards. The 0.156-inch spacing accommodates common trace widths. Verify that the panel mount flange fits the enclosure constraints. Confirm that the operating temperature range meets the environmental demands of the final assembly.

Part Context

This part belongs to the EDAC 306 Series, designed for general-purpose card edge applications. The series offers various position counts and termination options. The 306-033 variant specifically provides 66 contacts in a dual arrangement, balancing density with mechanical stability for standard industrial environments.

Replacement Considerations

Check the 306-033-520-104 as a potential alternative with similar specifications but potentially different plating thickness or packaging. Verify mechanical fit and electrical continuity before substituting any cross-referenced parts.
