Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 66POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：66
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

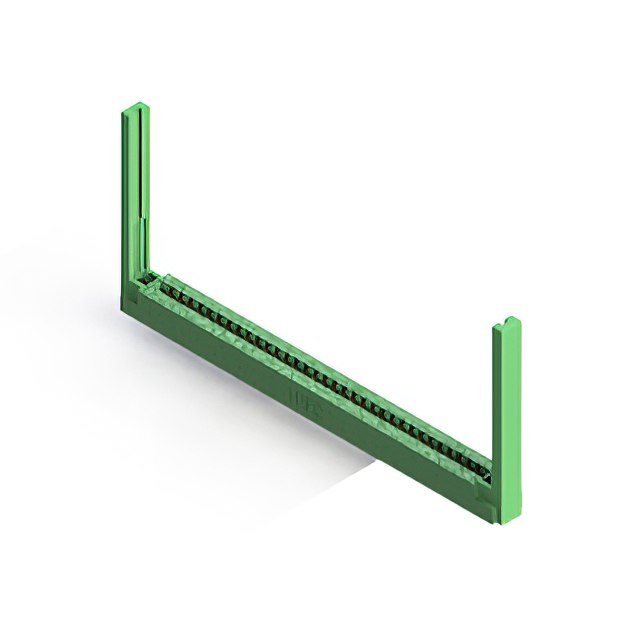

The EDAC Inc. 306-033-520-168 is a standard card edge connector designed for vertical panel mounting applications. It features a dual female contact configuration with 66 positions arranged in a single centerline row. The connector utilizes a 3.96 mm (0.156 inch) contact spacing and is rated for 5 A current. It accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The contacts are gold-plated copper alloy, housed in a green thermoplastic insulator body.
Feature Summary
- Dual edge female contact design for secure board retention
- Low profile thermoplastic insulator body construction
- Gold-plated copper alloy contacts for reliable conductivity
- Vertical panel mount installation style
Applications
- Industrial control system interconnects
- Telecommunications equipment backplanes
- Test and measurement instrument interfaces
- General purpose electronic module connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required PCB thickness and termination type. Confirm that the 66-position count matches the target application requirements. Check RoHS compliance status if restricted substances are mandated by the end product specifications. Ensure the vertical panel mount orientation aligns with the mechanical enclosure design constraints.
Selection Notes
Select this component when a high-density connection with 3.96 mm spacing is required for dual-edge board insertion. The 5 A rating supports moderate power distribution needs. Verify that the 1.57 mm board thickness tolerance fits the target PCB stack-up. Consider the thermoplastic housing material for general environmental protection without specialized chemical resistance requirements.
Part Context
This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-033-520-168 specifically denotes the 66-position variant with dual female contacts. It is distinct from single-row or different pitch variants within the broader EDAC portfolio.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 3.96 mm pitch, 66 position count, and dual female contact configuration precisely.
