Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 66POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：66
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

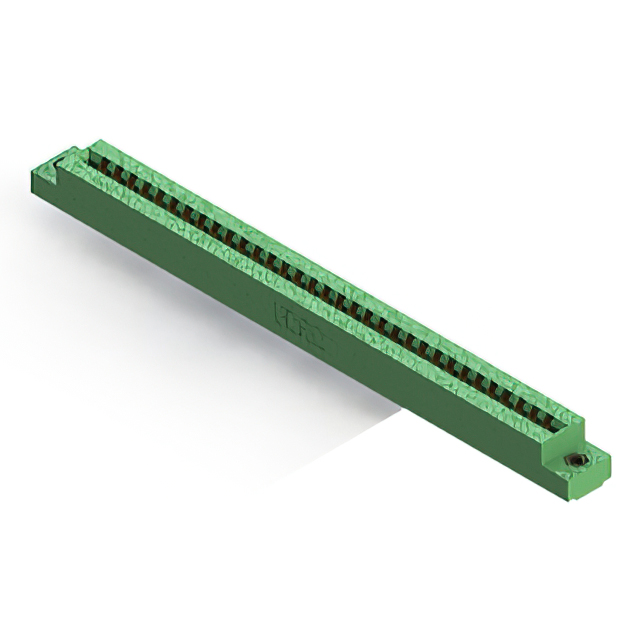

The EDAC Inc. 306-033-521-107 is a standard card edge connector from the 306 series, designed for panel mount applications with a vertical orientation. It features a dual female contact configuration with 33 positions and a 3.96 mm (0.156 inch) pitch. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm. Contacts are made of copper alloy with gold plating, rated for 5 A current and 5 GOhms insulation resistance. The housing utilizes thermoplastic material.
Feature Summary
- Accepts .062" (1.57mm) nominal thickness P.C. Board
- Low profile insulator body construction
- Single centreline row design with .156" (3.96mm) contact spacing
Applications
- Panel-mounted electronic assemblies requiring vertical card edge connection
- Industrial control systems utilizing standard thickness PCBs
- General-purpose interconnect solutions in thermoplastic-housed environments
Procurement Notes
Verify component authenticity through authorized EDAC distributors or direct manufacturer channels. Confirm that the received part matches the specific 306 series designation and 33-position count. Inspect gold-plated contacts for integrity and ensure the thermoplastic housing shows no signs of degradation. Cross-reference the datasheet specifications against your system requirements before finalizing procurement to avoid compatibility issues.
Selection Notes
Select this model when a vertical, panel-mount solution is required for 1.57 mm thick boards. The 3.96 mm pitch dictates board layout constraints. Ensure the application environment remains within the thermal limits of the thermoplastic housing. Verify that the 5 A current rating meets the electrical load requirements. Consider the single centreline row geometry for signal routing simplicity.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and mounting options. The 306-033-521-107 specifically denotes the 33-position variant with dual female contacts. It is distinct from high-temperature series like the 845 or 846 lines which may feature different materials or spacing.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC technical support for cross-referencing alternatives if this specific 33-position variant is unavailable.
