Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 68POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：34
- Number of Positions：68
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

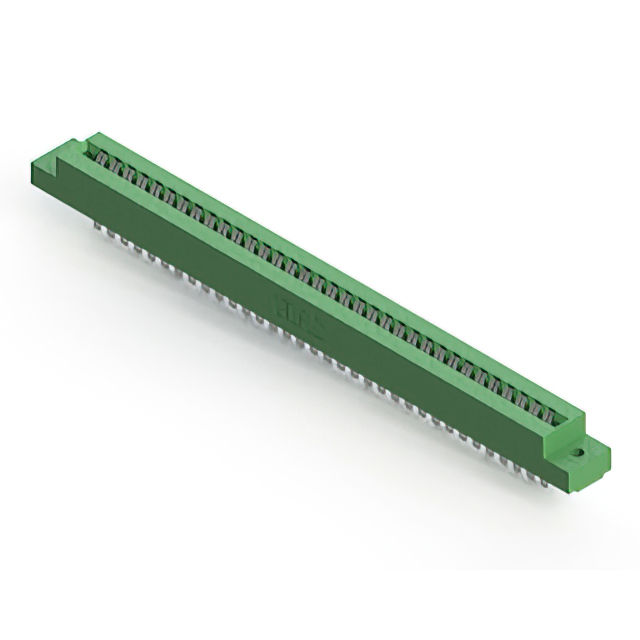

The EDAC Inc. 306-034-400-102 is a standard card edge connector designed for dual-edge female termination. It features 68 positions with a contact spacing of 0.156 inches (3.96 mm). The component accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are tin-plated, and the insulator body is green thermoplastic. This vertical panel-mount header belongs to the 306 series.
Feature Summary
- Dual-edge female configuration for secure board insertion
- Low profile insulator body design
- Single centerline row arrangement
Applications
- Industrial control systems
- Telecommunications equipment
- Computer peripheral interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to ensure correct plating and material specifications. Confirm that the required board thickness matches the 0.062-inch nominal tolerance. Check lead times as manufacturing cycles may vary by region. Ensure compatibility with existing panel mounting hardware before procurement.
Selection Notes
Select this model when a dual-edge connection is required for high-density signal routing. The 68-position count supports substantial I/O requirements. Verify that the tin plating meets environmental corrosion resistance needs. Ensure the vertical orientation fits within the designated chassis depth constraints.
Part Context
This component is part of the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-034-400-102 specifically addresses applications requiring dual-edge access with a 3.96 mm pitch. It serves as a reliable interface between backplanes and daughter cards in modular electronic assemblies.
Replacement Considerations
Cross-reference with other EDAC 306 series parts for alternative position counts. Verify mechanical dimensions against competitors like Glenair or Amphenol if sourcing from third parties. Ensure pinout compatibility remains unchanged during substitution.
