Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 68POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：34
- Number of Positions：68
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

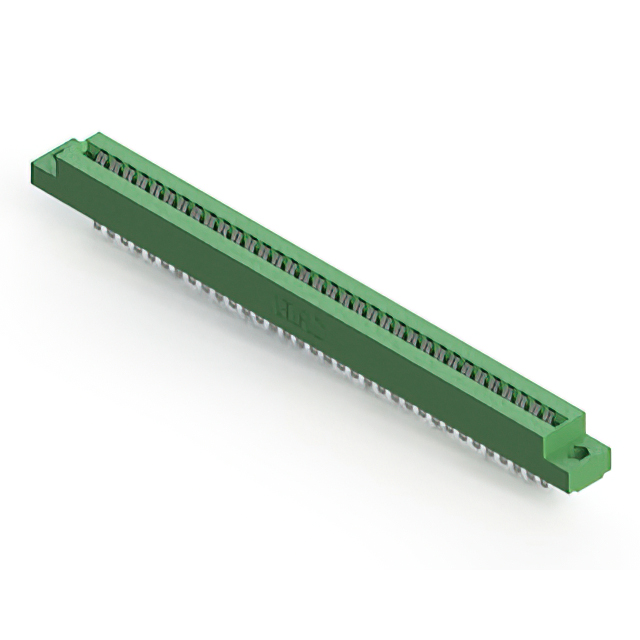

The EDAC Inc. 306-034-400-104 is a dual-edge female card edge connector designed for panel mount installation. It features 68 positions with a 0.156-inch (3.96mm) contact spacing and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are tin-plated copper alloy with a suspension type, housed in green thermoplastic polyester insulation. Operating temperature ranges from -40°C to 105°C.
Feature Summary
- Dual-edge female configuration for non-specified card types
- Panel mount installation with solder pin termination
- Tin-plated copper alloy suspension contacts
- Green thermoplastic polyester insulation housing
Applications
- Industrial control systems requiring robust edge connections
- Telecommunications equipment backplanes
- Test and measurement instrumentation interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current 306 Series Ordering Guide to ensure compatibility with required plating and termination styles. Confirm that the tin-plated variant meets environmental compliance requirements such as RoHS3. Cross-reference the 68-position count and 0.156-inch pitch with system design specifications before procurement.
Selection Notes
Select this component when a dual-edge female connector with 68 positions is required for panel mounting. Ensure the mating card thickness falls within the 0.054 to 0.070-inch range. Verify that the tin plating is suitable for the intended electrical environment compared to gold-plated alternatives in the same series.
Part Context
This part belongs to the EDAC 306 Series of standard card edge connectors. The series offers various position counts and termination options. The 306-034-400-104 specifically utilizes a 0.156-inch pitch and tin plating, distinguishing it from gold-plated or different position variants within the broader product family.
Replacement Considerations
Compatible substitutes include other EDAC 306 series parts with matching 68 positions and 0.156-inch pitch. Verify that alternative parts maintain the dual-edge female configuration and compatible board thickness specifications.
