306-034-420-104

Overview

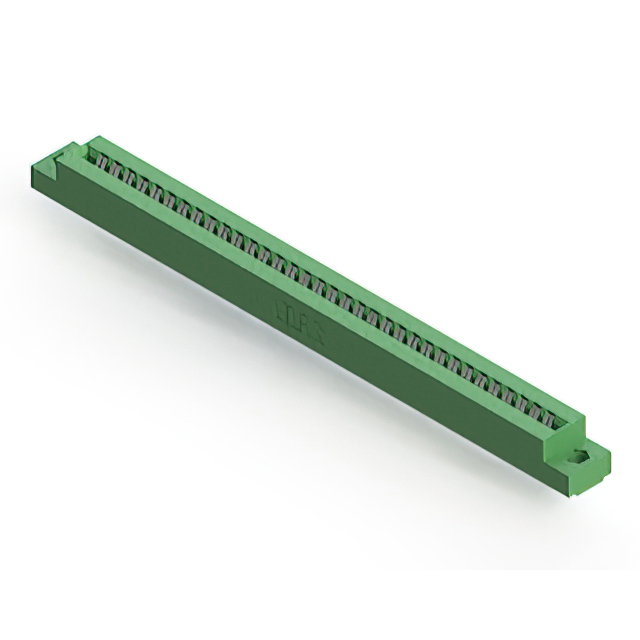

The EDAC Inc. 306-034-420-104 is a standard card edge connector receptacle featuring 68 positions arranged in a dual-edge configuration. It utilizes a 0.156-inch (3.96 mm) contact spacing and accepts printed circuit boards with a thickness range of 0.054 to 0.070 inches (1.37 mm to 1.78 mm). The component employs tin-plated copper alloy contacts with a solder pin termination type for secure board attachment. Designed for panel mount installation, it operates within a temperature range of -40°C to 105°C and is constructed from green thermoplastic polyester insulation.

Feature Summary

• Dual-edge female connector design accommodating non-specified card types
• Panel mount installation style with vertical orientation
• Tin-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester insulator body providing environmental stability

Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Test and measurement instrument module mounting
• Computing hardware peripheral expansion slots

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required plating and termination specifications. Confirm that the selected variant matches the intended board thickness and mounting requirements. Cross-reference the part number with official EDAC documentation to validate availability status and compliance with relevant regulatory standards such as RoHS before finalizing procurement orders.

Selection Notes

Select this component when a high-density dual-edge connection is required for panel-mounted applications. Ensure the design accommodates the specified 0.156-inch pitch and supports the target PCB thickness range. Consider the tin plating option if cost-effectiveness is prioritized over the extended corrosion resistance offered by gold finishes. Verify that the thermal operating range aligns with the environmental conditions of the intended deployment scenario.

Part Context

This component belongs to the EDAC 306 series, which provides various card edge connector solutions with standardized 0.156-inch spacing. The series offers multiple position counts and termination options to support diverse electronic assembly needs. The 306-034-420-104 specifically addresses applications requiring robust dual-edge connectivity with panel-mount flexibility and standard industrial material properties.

Replacement Considerations

Consult the official EDAC 306 Series Ordering Guide for direct substitute part numbers within the same family. Verify mechanical dimensions and electrical ratings to ensure functional equivalence. No alternative manufacturer part numbers are confirmed in public documentation.
