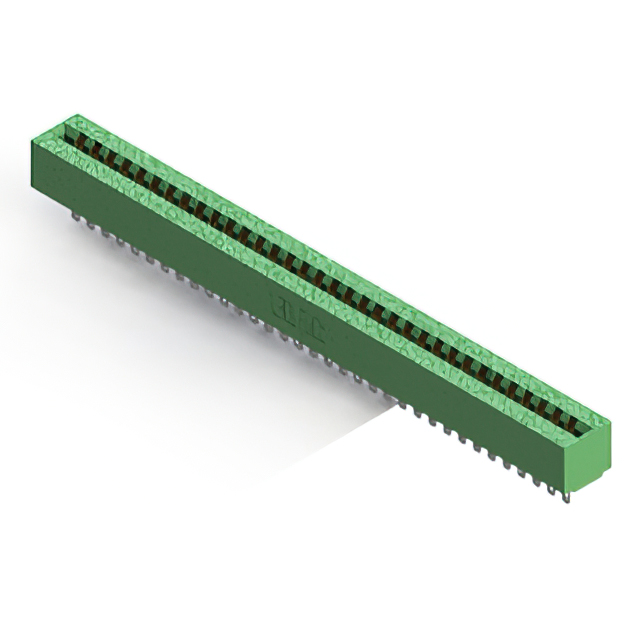

306-034-500-101

$15.13

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:0c5882014e0c Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：34
Number of Positions：68
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Free Hanging (In-Line)
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Download product information

306-034-500-101

Overview

The EDAC Inc. 306-034-500-101 is a dual-edge female card edge connector featuring 68 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. Designed for panel mounting, the unit accepts printed circuit boards ranging from 0.054 to 0.070 inches in thickness. The connector operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.
