306-034-500-102

Overview

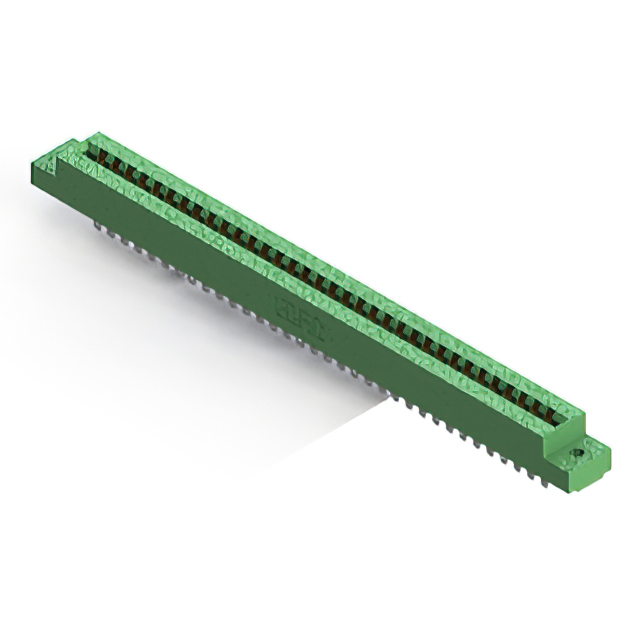

The EDAC Inc. 306-034-500-102 is a standard card edge connector designed for panel mounting applications. It features a single-sided configuration with 34 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes copper alloy contacts with a gold finish, rated for 5 A current and offering an insulation resistance of 5 Gohms. It accommodates printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm) and employs solder eyelet termination. The insulator body is constructed from thermoplastic material.

Feature Summary

• Single-sided design accepting .062 inch nominal PCB thickness
• Low profile insulator body construction
• Gold-plated copper alloy contacts for reliable connection
• Panel mount installation style

Applications

• Industrial control systems requiring single-edge board connections
• Electronic modules utilizing 1.57 mm thick circuit boards
• Panel-mounted interface hardware

Procurement Notes

Verify the specific ordering suffix to confirm the exact pin count and termination type. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the single-sided configuration meets the signal routing requirements. Check for RoHS compliance status if required by project specifications. Validate the panel mounting orientation against the mechanical assembly constraints.

Selection Notes

Select this component when a single-sided card edge connector is required for 34-position interfaces. The 3.96 mm pitch suits applications where broader spacing is necessary. The 5 A rating supports moderate power distribution needs. Consider the low-profile body for space-constrained panel installations. Verify that the solder eyelet termination aligns with the available PCB pad layout.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic interconnection needs. The 306 series is characterized by its robust thermoplastic housing and reliable gold-plated contact systems. It serves as a foundational component in modular electronic designs requiring secure panel-mounted connections.

Replacement Considerations

Direct substitutes within the same series include the 306-033-520-102 and 306-034-500-102 variants with different suffixes indicating position or finish changes. Cross-series replacements require matching the 3.96 mm pitch and 1.57 mm board thickness. Verify that alternative parts maintain the single-sided configuration and panel mount style.
