306-034-500-158

Overview

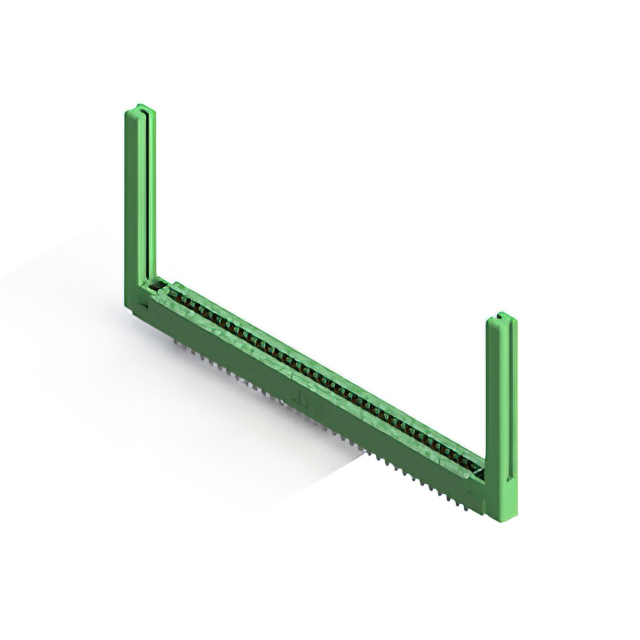

The EDAC Inc. model 306-034-500-158 is a standard card edge connector designed for vertical panel mount applications. It features a dual female configuration with 68 positions and a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contact surfaces are gold-plated to ensure reliable signal transmission, while the housing utilizes thermoplastic polyester for durability. This component operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 5 GOhms.

Feature Summary

• Dual female edge connector design accommodating two-sided card insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Vertical panel mount orientation for secure structural integration
• Low profile insulator body constructed from thermoplastic polyester

Applications

• Medical interconnect systems requiring durable connections
• Agricultural technology equipment operating in harsh environments
• Industrial control panels utilizing standard card edge interfaces

Procurement Notes

Verify part number accuracy against official EDAC documentation before procurement. Confirm that the specific ordering suffix matches the required dual-edge female configuration and contact spacing. Ensure compatibility with the target PCB thickness of 0.062 inches. Check regional availability as distribution may be restricted in certain areas. Validate RoHS compliance status through the manufacturer's current datasheet.

Selection Notes

Select this connector when a dual-sided card interface is required for vertical mounting. The 0.156-inch pitch suits applications needing wider spacing than standard 0.100-inch connectors. Gold plating is essential for environments demanding high reliability. Verify that the thermoplastic polyester housing meets thermal requirements up to 105°C. Ensure the panel mount style aligns with the mechanical constraints of the enclosure design.

Part Context

This component belongs to the EDAC 306 series, which specializes in card edge connectors with 0.156-inch contact spacing. The series offers various row configurations and termination options. The 306-034-500-158 specifically denotes a 68-position dual female variant. EDAC designs these connectors for robust performance in communication, consumer electronics, and industrial sectors.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify if other 306 series variants with different position counts or single-edge configurations meet the functional requirements. Consult EDAC technical support for cross-reference data regarding equivalent dual female connectors.
