306-034-500-168

Overview

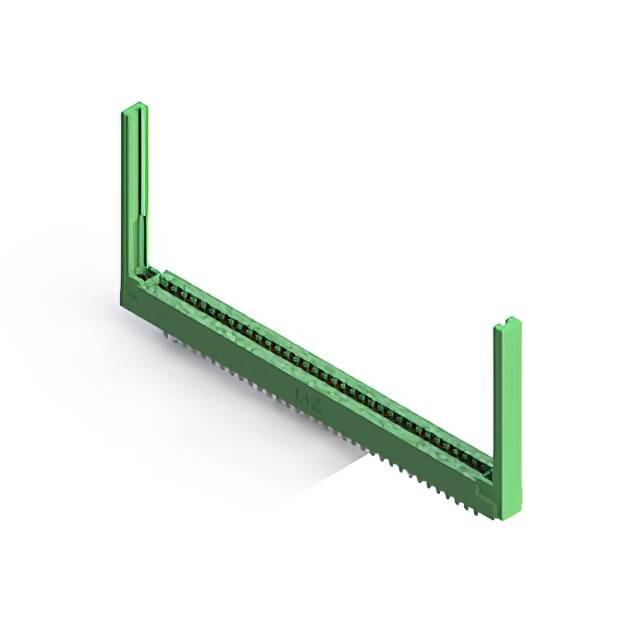

The EDAC Inc. 306-034-500-168 is a dual female card edge connector featuring 68 positions with a 0.156-inch contact spacing. It utilizes a single centerline row design and accepts printed circuit boards with a nominal thickness of 0.062 inches. The component employs gold-plated copper alloy contacts housed in a low-profile insulator body, ensuring reliable signal transmission for expansion cards.

Feature Summary

• Dual female configuration designed for secure interface with printed circuit boards
• Single centerline row architecture providing standardized contact alignment
• Gold-plated copper alloy contacts to ensure durable electrical conductivity

Applications

• Expansion card interconnection systems
• Host system board interfaces
• General-purpose electronic device connectivity

Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required contact spacing and board thickness align with your design specifications before procurement. Cross-reference datasheets for any updates regarding material composition or environmental ratings.

Selection Notes

Select this component when a dual female card edge connector with 68 positions is required. Confirm that the 0.156-inch spacing matches the target PCB layout. Verify that the housing material and temperature ratings meet the operational environment requirements of the final assembly.

Part Context

This connector belongs to the EDAC standard card edge series, which provides various mounting options and termination styles. The 306 series typically features thermoplastic housings and is designed for through-hole or surface-mount applications depending on the specific suffix configuration.

Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify that any replacement maintains identical pin count, spacing, and mechanical dimensions to ensure proper fit and function within the existing assembly.
