306-034-520-178

$17.45

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:098121fa1fb5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：34
Number of Positions：68
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Guides
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Download product information

306-034-520-178

Overview

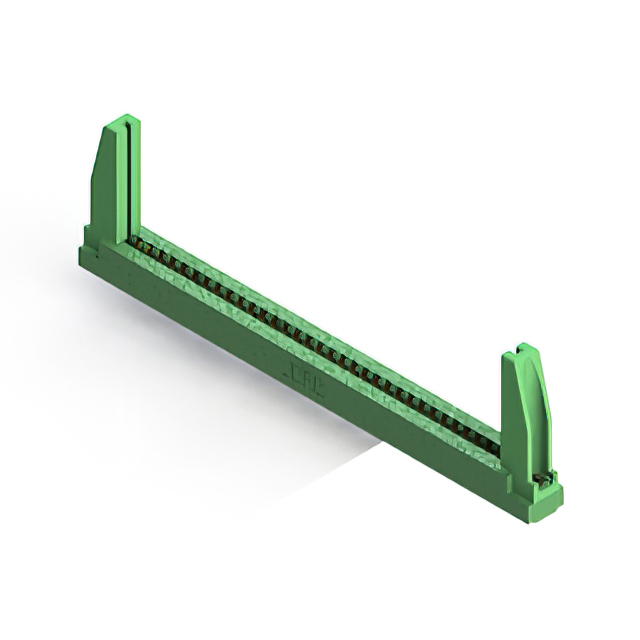

The EDAC Inc. 306-034-520-178 is a standard card edge connector from the 306 Series, designed for dual-edge female connections. It features 68 positions with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated PC tail type contacts and is housed in green thermoplastic polyester insulation. It supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm) and operates within a temperature range of -40°C to 105°C.

Feature Summary

Dual-edge female configuration for secure card insertion
Gold-plated PC tail contacts for reliable signal transmission
Green thermoplastic polyester housing for durability

Applications

Industrial control systems
Communication equipment
Consumer electronics modules

Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with design requirements. Confirm that the 68-position dual-edge specification matches the target PCB layout. Check for any regional distribution restrictions or RoHS compliance status prior to ordering, as availability may vary by region.

Selection Notes

Select this component when a dual-edge female connector with 68 positions and 3.96 mm spacing is required. Ensure the host PCB thickness falls within the 1.37 mm to 1.78 mm range. Consider the operating temperature limits and material composition for environmental suitability in industrial or consumer applications.

Part Context

This connector belongs to the EDAC 306 Series, which offers various configurations for card edge applications. The series provides options for different contact spacings, row counts, and termination types. The 306-034-520-178 specifically addresses needs for high-density dual-edge connections with standardized dimensions.

Replacement Considerations

Compatible substitutes include other EDAC 306 Series connectors with matching position counts and spacing, such as the 306-034-500-178, provided the termination style and housing color meet application requirements.
