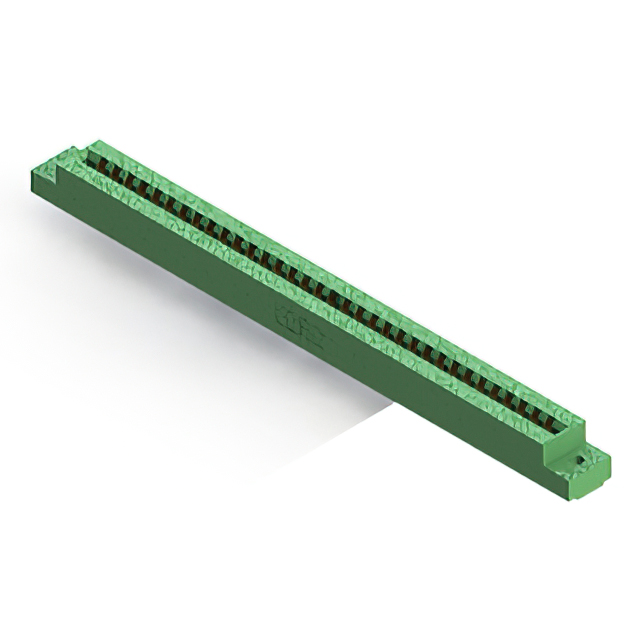

306-034-521-102

$15.13

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box

SKU:864550d943e4 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN EDGE DUAL FMALE 68POS 0.156
Series：306
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：34
Number of Positions：68
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Download product information

306-034-521-102

Overview

The EDAC Inc. 306-034-521-102 is a dual-edge female card edge connector from the 306 series, designed for vertical panel mounting. It features 68 positions with a 0.156-inch (3.96mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The contacts are constructed from copper alloy with gold plating to ensure reliable signal transmission. This component utilizes a thermoplastic insulator body and is rated for an operating temperature range of -40°C to 105°C.

Feature Summary

Dual-edge female configuration providing connection on both sides of the board
Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
Vertical panel mount style with low-profile insulator body design

Applications

Industrial control systems requiring robust panel-mounted interconnects
Telecommunications equipment utilizing standard card edge interfaces
Test and measurement instrumentation needing high-reliability connections

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official catalog to confirm pin count, contact spacing, and termination type. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm that the dual-edge female configuration aligns with the system design requirements before finalizing procurement orders.

Selection Notes

Select this model when a dual-edge interface is required for vertical panel integration. The 3.96mm spacing accommodates standard board layouts, while the gold plating supports applications demanding stable electrical performance. Verify that the thermal rating meets the operational environment constraints.

Part Context

This component belongs to the EDAC 306 series of card edge connectors, which are engineered for high-density interconnect applications. The series offers various position counts and mounting options, providing flexibility for diverse electronic assembly needs within industrial and commercial sectors.

Replacement Considerations

Cross-reference part numbers within the 306 series for alternative position counts or spacing variations. Verify mechanical dimensions and electrical ratings against existing designs to ensure functional equivalence without redesigning the host panel.
