Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 68POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：34
- Number of Positions：68
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

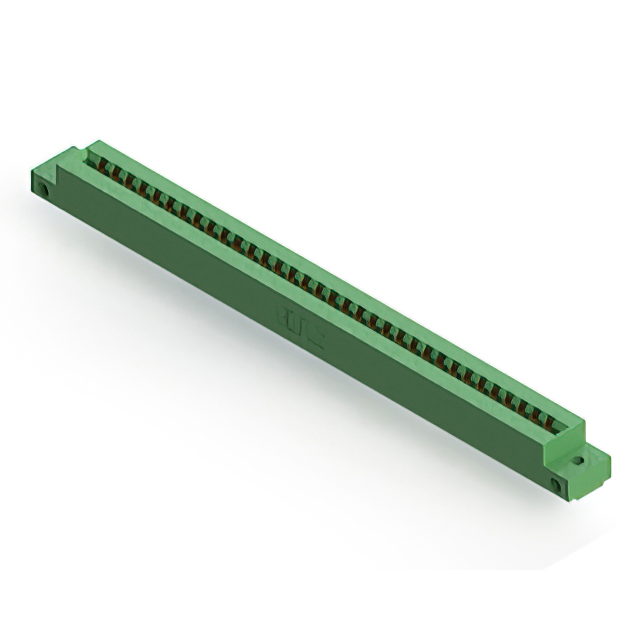

The EDAC Inc. 306-034-521-112 is a card edge connector designed for through-hole mounting with solder termination. It features a dual-edge female configuration with 68 positions arranged in a single centerline row. The contact spacing is 0.156 inches (3.96 mm), and the insulator body is green. The contacts are made of copper alloy with a gold finish, suitable for reliable signal transmission.
Feature Summary
- Dual-edge female connector design accommodating non-specified card types
- Gold-plated copper alloy contacts ensure durable electrical performance
- Through-hole mounting provides secure mechanical stability on printed circuit boards
Applications
- Industrial control systems requiring robust interconnect solutions
- Medical equipment needing reliable signal transmission interfaces
- Aerospace applications demanding high-quality connector components
Procurement Notes
Verify the specific part number against official EDAC documentation to confirm compatibility with your board thickness and pitch requirements. Ensure that the gold contact finish and through-hole termination method align with your assembly process. Cross-reference the datasheet for environmental ratings and RoHS compliance status before finalizing procurement decisions.
Selection Notes
Select this component when a dual-edge female connector with 0.156-inch spacing is required. Consider the through-hole mounting style for applications needing strong mechanical retention. Evaluate the green insulator material and gold contact finish for suitability in your specific operational environment and signal integrity needs.
Part Context
EDAC Inc. specializes in card edge and rack & panel connectors, offering extensive interconnect solutions for computing, storage, medical, aerospace, industrial, communications, consumer, and clean technology sectors. The company emphasizes quality assurance and logistics efficiency to support global OEMs and distribution channels.
Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without confirming pin count, spacing, and mounting specifications.
