306-035-400-102

Overview

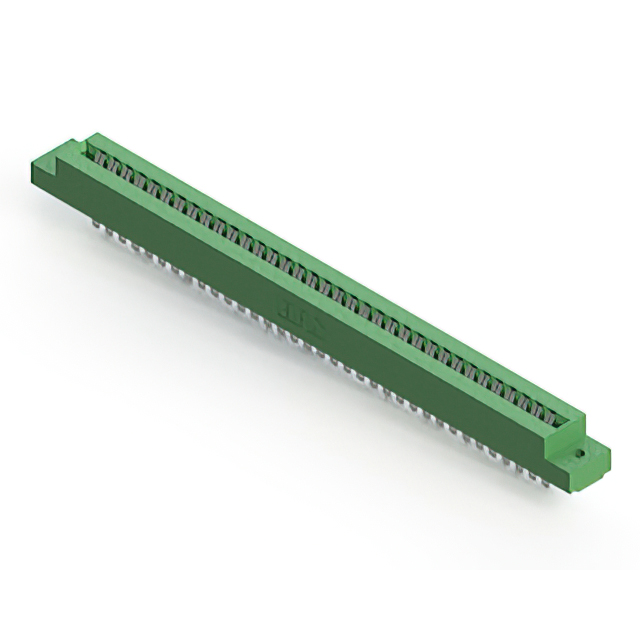

The EDAC Inc. 306-035-400-102 is a standard card edge connector featuring 70 positions with a 3.96 mm pitch. It utilizes dual female contacts made of copper alloy with a tin finish, designed for cantilever contact types. The component supports a board thickness of 1.57 mm and offers a current rating of 5 A. It employs panel mount installation with a vertical orientation and uses a green thermoplastic housing.

Feature Summary

• Dual edge female configuration for robust board interface
• Cantilever contact design ensures reliable signal transmission
• Vertical panel mount style facilitates structured assembly

Applications

• Industrial control systems requiring high-density connections
• Telecommunications equipment backplanes
• Computer peripheral interfaces

Procurement Notes

Verify the specific contact finish and housing color against the latest manufacturer datasheet before integration. Confirm that the 1.57 mm board thickness requirement aligns with your PCB design specifications to ensure proper mechanical fit and electrical performance during operation.

Selection Notes

Select this model when a 70-position dual-edge connector is required for vertical panel mounting. Ensure compatibility with 3.96 mm pitch designs and verify that the tin-plated copper alloy contacts meet the environmental and conductivity requirements of the target application environment.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series provides various position counts and termination options for general-purpose electronic interconnects. The 306-035-400-102 specifically addresses applications needing a high pin count in a compact vertical form factor.

Replacement Considerations

Cross-reference with other EDAC 306 series variants for alternative finishes or housing colors. Verify mechanical dimensions and electrical ratings match exactly before substituting with generic equivalents.
