306-035-400-104

Overview

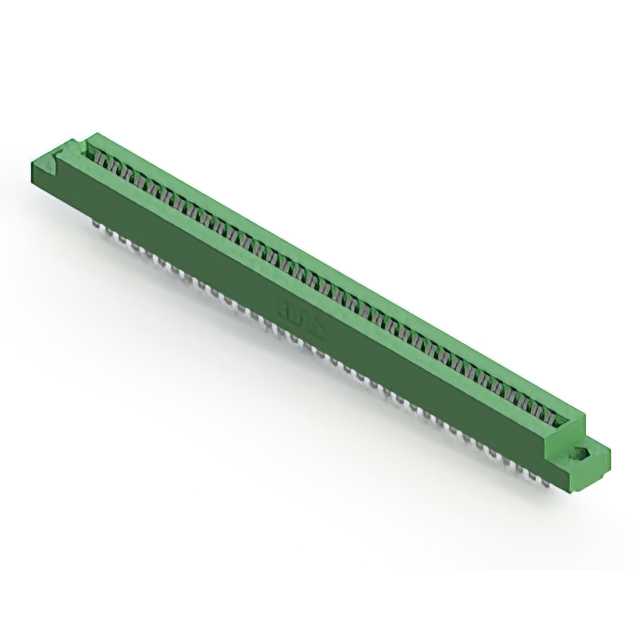

The EDAC Inc. 306-035-400-104 is a standard card edge connector designed for vertical through-hole mounting. It features a single row of 35 positions with a pitch of 3.96 mm (0.156 inches). The contacts are made of copper alloy and plated with tin, rated for 5 A current. The insulator is green Diallyl Phthalate (DAP), supporting board thicknesses up to 1.57 mm. Operating temperatures range from -40°C to +125°C.

Feature Summary

• Vertical through-hole termination for secure PCB integration
• Single central contact row configuration
• Tin-plated copper alloy contacts for conductivity
• Green DAP insulator housing

Applications

• High-temperature electronic assemblies
• Industrial control systems
• Communication equipment interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating and insulation material specifications. Ensure the selected variant matches the required board thickness and current rating for the target application environment.

Selection Notes

Select this component when a single-row, high-current card edge interface is required. Confirm that the 3.96 mm pitch aligns with the mating card edge design. Validate thermal requirements against the 125°C maximum operating limit.

Part Context

This part belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination styles. This specific model provides a balance of current capacity and mechanical stability for vertical mounting applications.

Replacement Considerations

Cross-reference with other EDAC 306 series variants for different position counts or plating options. Verify compatibility with existing tooling and mating cards before substitution.

FAQ

What is the contact plating material?

The contacts are copper alloy plated with tin.

What is the maximum operating temperature?

The maximum operating temperature is +125°C.
