Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 70POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：35
- Number of Positions：70
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

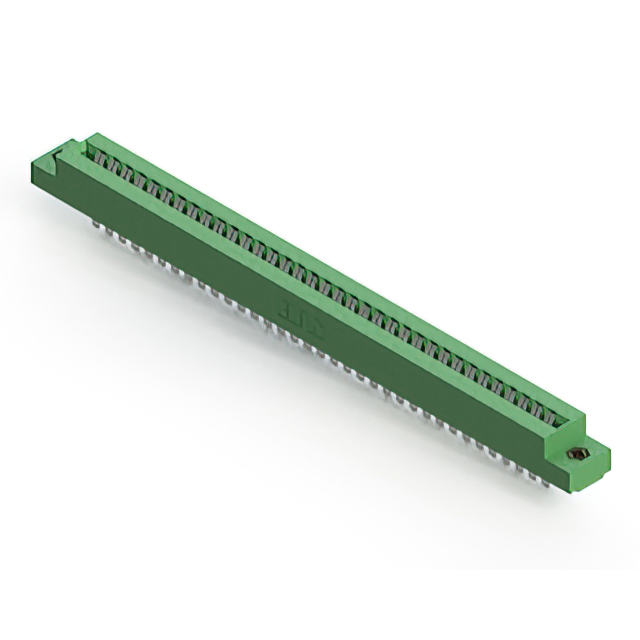

The EDAC Inc. model 306-035-400-107 is a standard card edge connector from the 306 series, designed for panel mount installation with a vertical orientation. It features a dual female contact configuration with 35 positions arranged in a single central row. The connector utilizes a 0.156-inch (3.96 mm) pitch and accepts board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). Constructed with copper alloy contacts featuring gold plating and green thermoplastic polyester insulation, it provides reliable electrical interconnection for edge-board applications.
Feature Summary
- Dual female contact configuration with 35 positions
- Gold-plated copper alloy contacts for conductivity
- Green thermoplastic polyester insulator
- Panel mount vertical installation style
Applications
- Industrial control systems
- Telecommunications equipment
- Medical devices
- Energy sector hardware
Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to ensure compatibility with design requirements. Confirm that the dual female configuration and 35-position count match the target application. Check for RoHS compliance status as indicated in current datasheets. Ensure sourcing channels provide genuine components to avoid counterfeit risks.
Selection Notes
Select this component when a dual-row female card edge connector with 35 positions is required. The 0.156-inch pitch and panel mount style are critical constraints. Verify that the host PCB thickness falls within the specified range of 0.054 to 0.070 inches. Consider the green insulator color and gold contact plating for environmental and electrical needs.
Part Context
This connector belongs to the EDAC 306 series, which offers various contact terminations, mounting options, and guide solutions. The series supports high-temperature insulators and multiple row configurations. EDAC provides extensive accessories and 3D models for integration into communication, consumer electronics, medical, energy, and industrial applications.
Replacement Considerations
Consult the EDAC 306 Series Ordering Guide for verified substitute part numbers. Cross-reference position counts, pitch, and termination styles before substitution. Ensure any alternative maintains the same panel mount and vertical orientation specifications.
