Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 70POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：35
- Number of Positions：70
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

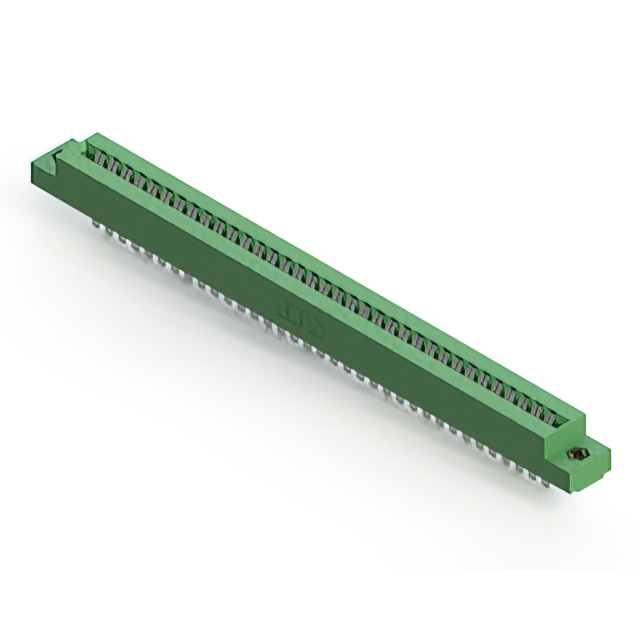

The EDAC Inc. model 306-035-400-108 is a dual female card edge connector featuring 70 positions arranged in two rows. It utilizes a 0.156-inch (3.96 mm) contact spacing with a single centerline row configuration. The component is designed to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are tin-plated copper alloy, and the insulator body is green. This vertical termination connector employs solder for secure board attachment.
Feature Summary
- Dual female contact configuration providing 70 connection points across two rows
- Single centerline row design accommodating standard 0.062-inch PCB thickness
- Solder termination method ensures reliable vertical mounting on circuit boards
Applications
- Standard card edge interface connections
- Vertical PCB mounting applications
- General electronic assembly requiring dual-row connectivity
Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm plating type, contact count, and termination style. Ensure the selected variant matches the required PCB thickness and contact spacing specifications. Confirm RoHS compliance status through the manufacturer's current datasheet before finalizing procurement orders.
Selection Notes
Select this connector when a dual-row female interface is required for standard thickness boards. The 0.156-inch pitch defines the compatible card edge width. Verify that the tin-plated contacts meet the environmental and conductivity requirements of the target application compared to gold-plated alternatives.
Part Context
This component belongs to the EDAC 306 series of standard card edge connectors. The series offers various position counts and termination options. The 306-035-400-108 specifically denotes the 70-position dual female variant with tin plating and solder termination.
Replacement Considerations
Cross-reference part numbers within the EDAC 306 series for alternative position counts or plating options. Verify mechanical dimensions and electrical ratings match before substituting with generic equivalents.
