306-035-400-112

Overview

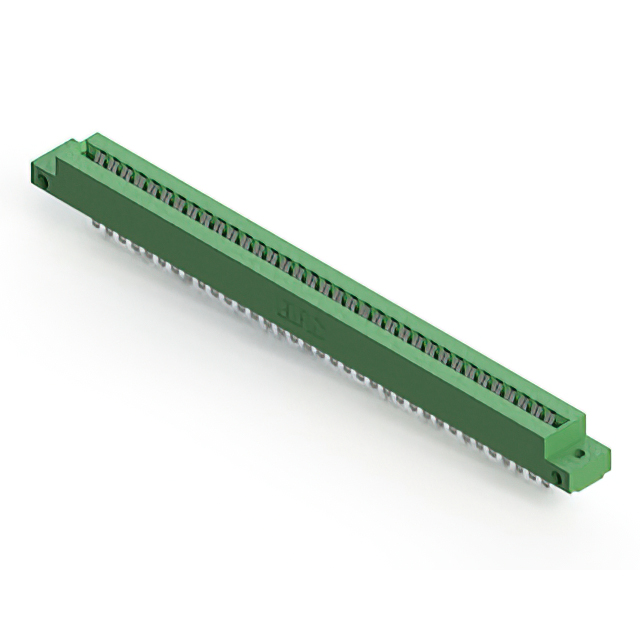

The EDAC Inc. 306-035-400-112 is a dual female card edge connector featuring 70 positions with a 0.156-inch (3.96mm) pitch. Designed for panel mounting, it utilizes solder lug termination and gold-plated contacts to ensure reliable signal transmission. The unit supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Panel mount installation with solder lug termination

Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Procurement Notes

Verify the complete part number including all suffixes against official EDAC documentation to confirm specific plating thickness and material variants. Ensure compatibility with target PCB edge thickness specifications before procurement. Cross-reference environmental compliance data such as RoHS status with current manufacturer declarations to meet regulatory requirements.

Selection Notes

Select this component when high-density connections are required in a dual-row format. The 0.156-inch pitch accommodates standard board layouts while providing robust mechanical stability. Consider the operating temperature range and insulation material properties for environments subject to thermal cycling or chemical exposure.

Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. It serves as a critical interface between circuit boards and external systems in modular designs.

Replacement Considerations

Consult EDAC official cross-reference guides for verified substitutes. Ensure replacement parts match the 70-position count, dual female configuration, and 0.156-inch pitch dimensions.
