306-035-500-102

Overview

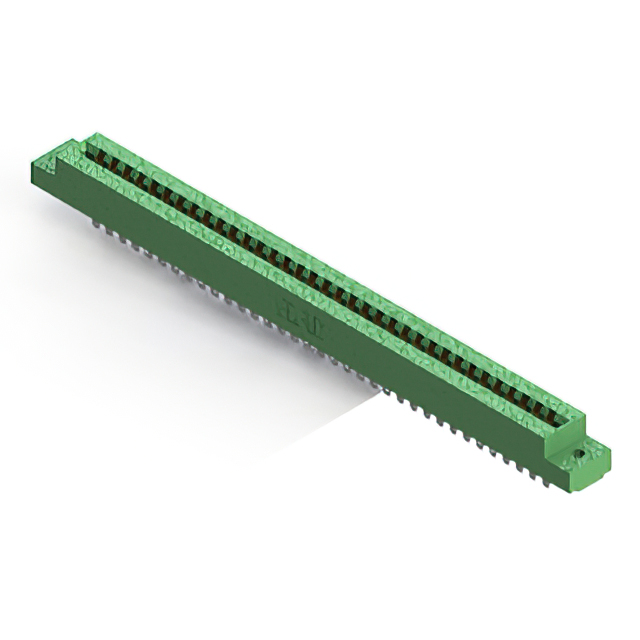

The EDAC Inc. 306-035-500-102 is a standard card edge connector from the 306 series, designed for panel mount installation with a vertical orientation. It features a dual female configuration with 70 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes gold-plated copper alloy contacts with a thickness of 10.0 µin (0.25 µm) to ensure reliable signal transmission. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The insulator body is constructed from thermoplastic material, providing structural integrity and electrical insulation in demanding environments.

Feature Summary

• Dual female contact configuration supports high-density interconnect applications
• Gold-plated copper alloy contacts provide corrosion resistance and low contact resistance
• Low-profile insulator body facilitates compact panel mounting solutions

Applications

• Industrial control systems requiring robust panel-mounted interfaces
• Telecommunications equipment utilizing standard card edge form factors
• Test and measurement instrumentation needing reliable vertical connections

Procurement Notes

Verify that the specific ordering suffix matches the required pin count and termination style. Confirm compatibility with the target PCB thickness of 0.062 inches. Ensure the panel cutout dimensions align with the flange specifications provided in the official datasheet. Cross-reference the manufacturer part number against authorized distributor catalogs to guarantee authenticity and traceability before finalizing procurement orders.

Selection Notes

Select this component when a dual-sided card edge interface with 70 positions is required. The 0.156-inch pitch suits applications prioritizing mechanical stability over miniaturization. Verify that the vertical panel mount style fits the enclosure design constraints. Consider the thermal operating range and insulation resistance requirements to ensure suitability for the intended operational environment.

Part Context

This component belongs to the EDAC 306 series of standard card edge connectors. The series is characterized by its versatility in handling various board thicknesses and its robust construction for industrial use. The 306-035-500-102 variant specifically addresses needs for higher position counts within the standard pitch family, offering a balance between connectivity density and mechanical durability.

Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different termination or flange options. Verify that any replacement maintains the 0.156-inch spacing and dual female contact type. Ensure mechanical dimensions match the existing panel layout to avoid redesign efforts.
