306-035-500-107

Overview

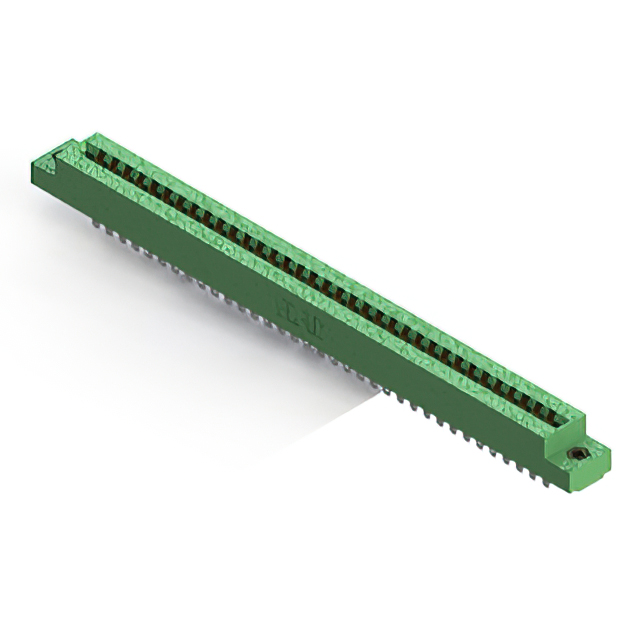

The EDAC Inc. 306-035-500-107 is a dual female card edge connector from the 306 series, designed for panel mount applications. It features 70 positions arranged in two rows with a contact spacing of 0.156 inches (3.96 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts plated with gold and a thermoplastic insulator body, it supports an operating temperature range of -40°C to +105°C.

Feature Summary

• Dual female configuration providing 70 total connection points across two rows
• Accepts standard 0.062 inch thick PCBs for reliable mechanical engagement
• Gold-plated copper alloy contacts ensure durable electrical conductivity
• Low-profile thermoplastic body facilitates compact panel integration

Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Embedded computing board interfaces

Procurement Notes

Verify that the specific part number matches the required 70-position dual-row configuration and 3.96 mm pitch. Confirm compatibility with the target PCB thickness of 1.57 mm to ensure proper mechanical fit. Check for any updated environmental compliance certifications or packaging variations before finalizing procurement orders.

Selection Notes

Select this component when a high-density dual-row interface is required for panel-mounted systems. Ensure the design accommodates the 0.156-inch centerline spacing and vertical mounting orientation. Validate that the thermal environment remains within the specified -40°C to +105°C operational range for long-term reliability.

Part Context

This connector belongs to the EDAC 306 series, which specializes in standard card edge connectors for robust industrial applications. The series offers various position counts and row configurations to support diverse board-to-panel connectivity needs while maintaining consistent mechanical and electrical performance standards.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Cross-reference with other EDAC 306 series variants only if pin count, pitch, and mounting style requirements can be adjusted accordingly.

FAQ

What is the nominal PCB thickness supported by this connector?

The connector is designed to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm).

How many contact rows does the 306-035-500-107 feature?

It features a dual female configuration with two rows of contacts, totaling 70 positions.
