Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 70POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：35
- Number of Positions：70
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount
- Termination：Solder Eyelet(s)
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

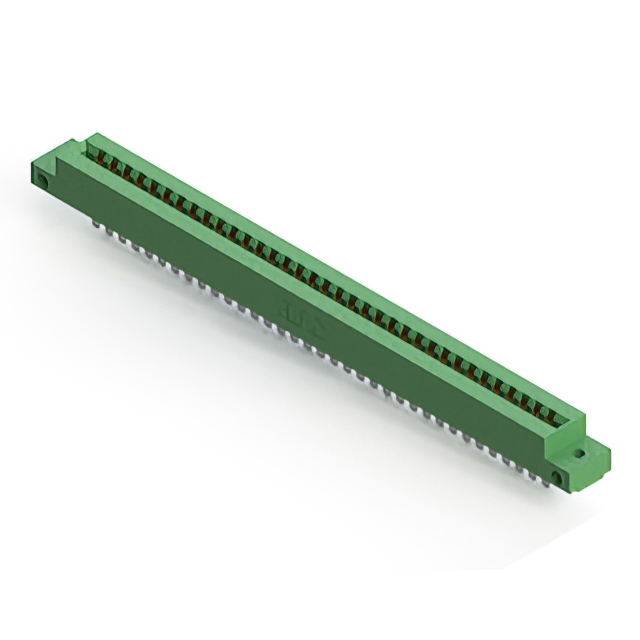

The EDAC Inc. 306-035-500-112 is a dual female edgeboard connector featuring 70 positions with a 0.156-inch (3.96mm) contact spacing. It utilizes gold-plated copper alloy contacts and solder eyelet termination for panel mounting. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm).
Feature Summary
- Accepts standard 0.062 inch nominal thickness PCBs
- Low profile insulator body design
- Single centerline row configuration
Applications
- Medical interconnect solutions
- Ambulance communication systems
- Ventilator hardware integration
- CPAP machine connections
Procurement Notes
Verify the specific suffix code to confirm exact pin count and spacing parameters, as variations exist within the series. Ensure the ordering documentation matches the required 70-position dual female specification. Confirm that the solder eyelet termination style aligns with the target panel mounting requirements before finalizing procurement.
Selection Notes
Select this component when a low-profile dual-edge connector is required for 0.062-inch thick boards. The 0.156-inch spacing accommodates specific trace routing needs. Verify that the single centerline row layout fits the available panel space constraints compared to double-row alternatives.
Part Context
This part belongs to the EDAC 306 series of card edge connectors. The series offers various position counts and spacing options. This specific model provides a high-density solution for applications requiring robust electrical connections in compact medical or industrial enclosures.
Replacement Considerations
Cross-reference the 306-035-500-103 variant for potential compatibility. Verify that the replacement maintains the identical 0.156-inch pitch and 70-position count. Ensure the mechanical footprint and solder eyelet dimensions match the existing panel design.
FAQ
What is the nominal PCB thickness accepted by this connector?
The connector is designed to accept printed circuit boards with a nominal thickness of 0.062 inches (1.57mm).
Does this connector use a single or double row configuration?
It features a single centerline row configuration.
