Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 35POS 0.156
- Series：306
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：35
- Number of Positions：35
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：-
- Operating Temperature：-40°C ~ 105°C
Download product information
Overview

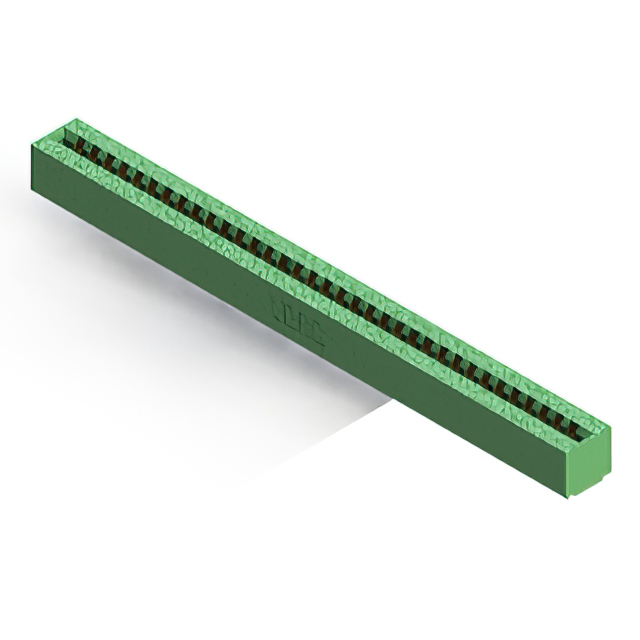

The EDAC Inc. 306-035-520-101 is a dual-edge female card edge connector featuring 35 positions with a 0.156-inch (3.96mm) spacing. It utilizes gold-plated contacts and a green thermoplastic housing. Designed for panel mounting, it supports board thicknesses of 0.054 to 0.070 inches. The component operates within a temperature range of -40°C to 105°C and complies with RoHS3 standards.
Feature Summary
- Dual-edge female configuration for secure board insertion
- Gold-plated contacts ensure reliable signal transmission
- Thermoplastic insulation provides structural stability
- Panel mount design facilitates fixed installation
Applications
- Industrial control systems requiring robust interconnects
- Communication equipment interface modules
- Consumer electronics internal circuit connections
- Medical device signal routing applications
Procurement Notes
Verify the specific part number suffix against official EDAC documentation to confirm exact pin count and plating specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS3 compliance status through current manufacturer certificates. Cross-reference ordering guides for potential series updates or superseded variants.
Selection Notes
Select this component when a dual-edge female connector with 35 positions is required. Verify that the mating card thickness falls within the specified 0.054 to 0.070 inch range. Consider the 0.156-inch pitch for layout constraints. Evaluate thermal requirements against the -40°C to 105°C operating limit. Confirm panel mounting space availability for the housing dimensions.
Part Context
This connector belongs to the EDAC 306 series, designed for standard card edge applications. It offers a balance of durability and electrical performance for general-purpose interconnect needs. The series supports various position counts and mounting styles. It is engineered for consistent contact reliability in demanding environments.
Replacement Considerations
Consult the official EDAC 306 Series Ordering Guide for verified substitute part numbers. Check for equivalent positioning and pitch specifications. Ensure mechanical fit and electrical ratings match the original design requirements before substitution.
