306-035-520-112

Overview

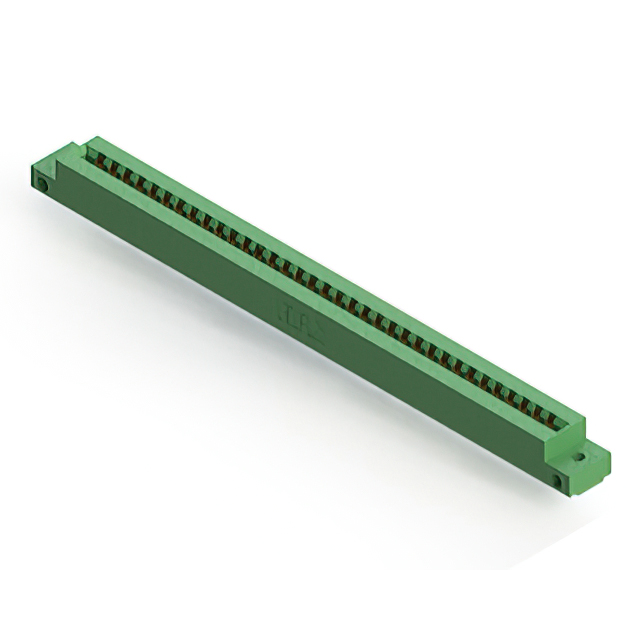

The EDAC Inc. 306-035-520-112 is a standard card edge connector designed for dual-edge female termination. It features 70 positions with a pitch of 0.156 inches (3.96 mm). The connector utilizes gold-plated contacts made from copper alloy, ensuring reliable signal transmission. It supports a current rating of 5 A and offers an insulation resistance of 5 Gohms. The housing is constructed from thermoplastic material, providing durability and stability in various electronic assemblies.

Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic housing for structural integrity

Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Consumer electronics assembly

Procurement Notes

Verify the specific pin count and contact plating thickness against the official EDAC datasheet before integration. Confirm that the panel cutout dimensions align with the 0.156-inch pitch specification to ensure proper mechanical fit. Check for any RoHS compliance documentation if required by your manufacturing standards.

Selection Notes

Select this component when a dual-edge female connection is required for high-density applications. Ensure the mating board thickness accommodates the connector's design parameters. Consider the 5 A current rating for power distribution needs within the system architecture.

Part Context

This part belongs to the EDAC 306 series, which specializes in standard card edge connectors. The series is known for providing reliable connections in compact spaces. The 306 series is widely used across multiple industries due to its standardized form factor and consistent performance characteristics.

Replacement Considerations

Direct substitutes may include other EDAC 306 series variants with matching position counts. Verify compatibility with existing PCB layouts before considering alternative manufacturers.
